【dubbo】使用IDEA搭建简单的dubbo项目

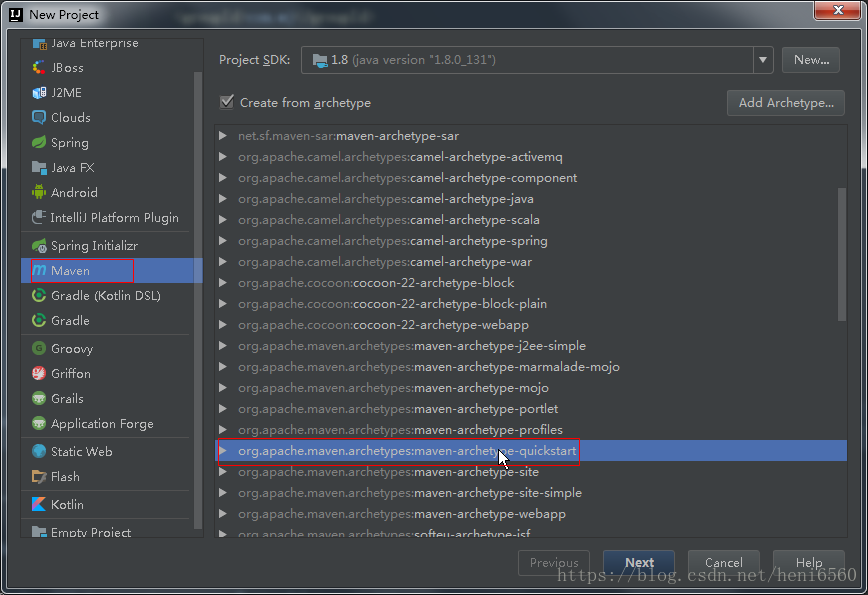

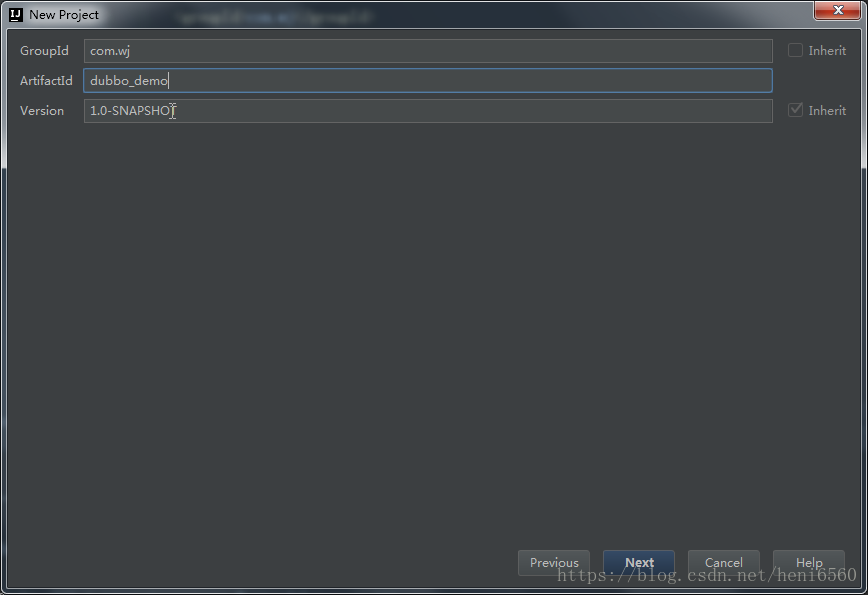

1.dubbo_demo:

pom.xml文件：

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <groupId>com.wj</groupId>
  <artifactId>dubbo_demo</artifactId>
  <version>1.0-SNAPSHOT</version>

  <name>dubbo_demo</name>
  <url>http://www.example.com</url>

  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <maven.compiler.source>1.7</maven.compiler.source>
    <maven.compiler.target>1.7</maven.compiler.target>
    <motan.version>0.3.0</motan.version>
    <dubbo.version>2.5.3</dubbo.version>
    <dubbox.version>2.8.4</dubbox.version>
    <spring.version>4.3.6.RELEASE</spring.version>
    <java.version>1.8</java.version>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
  </properties>

  <dependencies>
    <dependency>
      <groupId>com.alibaba</groupId>
      <artifactId>dubbo</artifactId>
      <version>2.5.3</version>
      <exclusions>
        <exclusion>
          <groupId>org.springframework</groupId>
          <artifactId>spring</artifactId>
        </exclusion>
      </exclusions>
    </dependency>
    <dependency>
      <groupId>com.github.sgroschupf</groupId>
      <artifactId>zkclient</artifactId>
      <version>0.1</version>
    </dependency>
    <!-- spring相关 -->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-core</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-beans</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-context</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-jdbc</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-web</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-webmvc</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-aop</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-tx</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-orm</artifactId>
      <version>4.3.12.RELEASE</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-context-support</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-test</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-jms</artifactId>
      <version>4.2.1.RELEASE</version>
    </dependency>
    <dependency>
      <groupId>org.aspectj</groupId>
      <artifactId>aspectjrt</artifactId>
      <version>1.7.4</version>
    </dependency>
    <dependency>
      <groupId>org.aspectj</groupId>
      <artifactId>aspectjweaver</artifactId>
      <version>1.6.11</version>
    </dependency>
  </dependencies>

  <modules>
    <module>dubbo_api</module>
    <module>dubbo_consumer</module>
    <module>dubbo_provider</module>
  </modules>

</project>

2.dubbo_provider:

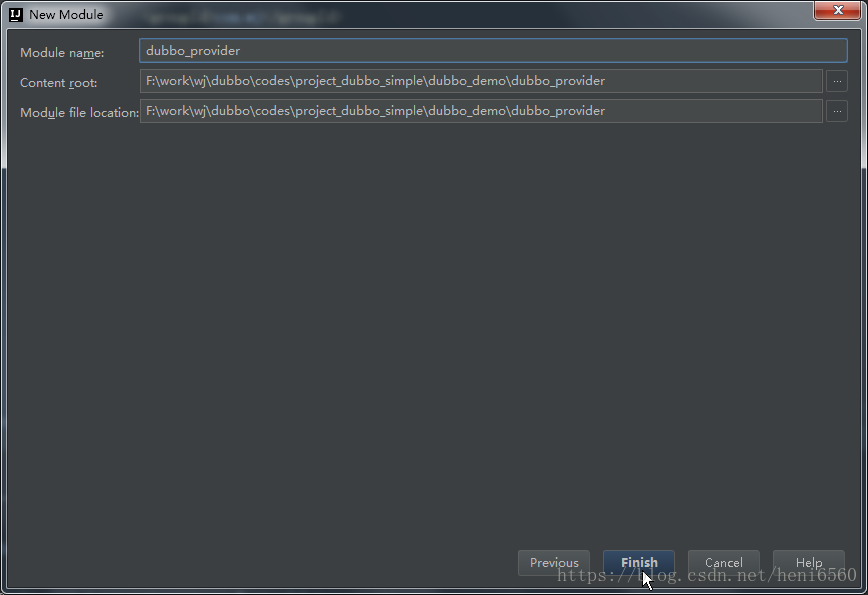

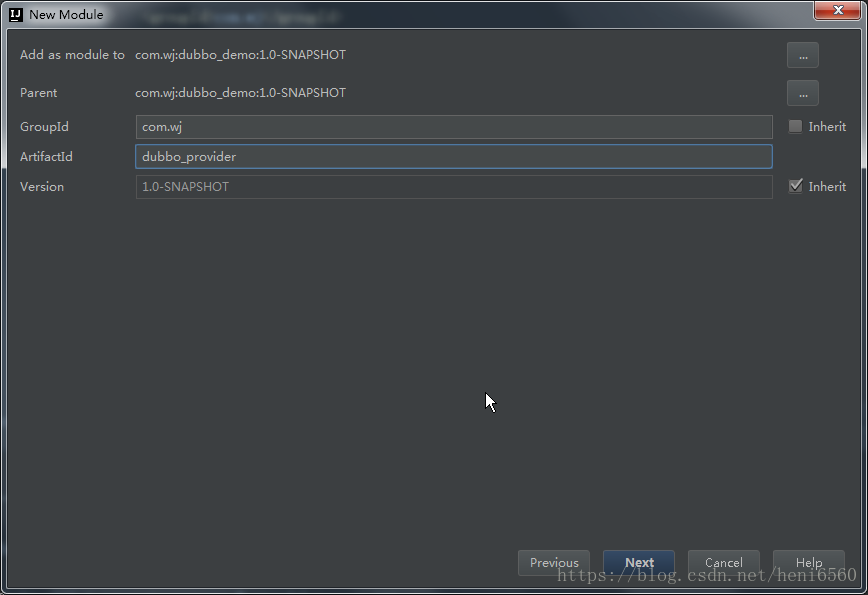

新建New Module，需要注意Parent，要选择dubbo_demo

pom.xml:

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>dubbo_demo</artifactId>
        <groupId>com.wj</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>
    <groupId>com.wj</groupId>
    <artifactId>dubbo_provider</artifactId>
    <name>dubbo_provider</name>
    <url>http://www.example.com</url>
<properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <maven.compiler.source>1.7</maven.compiler.source>
    <maven.compiler.target>1.7</maven.compiler.target>
</properties>

<dependencies>
    <dependency>
        <groupId>com.wj</groupId>
        <artifactId>dubbo_api</artifactId>
        <version>1.0-SNAPSHOT</version>
        <scope>compile</scope>
    </dependency>
</dependencies>
</project>

3.dubbo_api:

File->new Module,Parent，要选择dubbo_demo,和新建dubbo_provider一样

pom.xml:

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>dubbo_demo</artifactId>
        <groupId>com.wj</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>
<groupId>com.wj</groupId>
<artifactId>dubbo_api</artifactId>

<name>dubbo_api</name>
<url>http://www.example.com</url>

<properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <maven.compiler.source>1.7</maven.compiler.source>
    <maven.compiler.target>1.7</maven.compiler.target>
</properties>

<dependencies>
    <dependency>
        <groupId>junit</groupId>
        <artifactId>junit</artifactId>
        <version>4.11</version>
        <scope>test</scope>
    </dependency>
</dependencies>
</project>

4.dubbo_consumer:

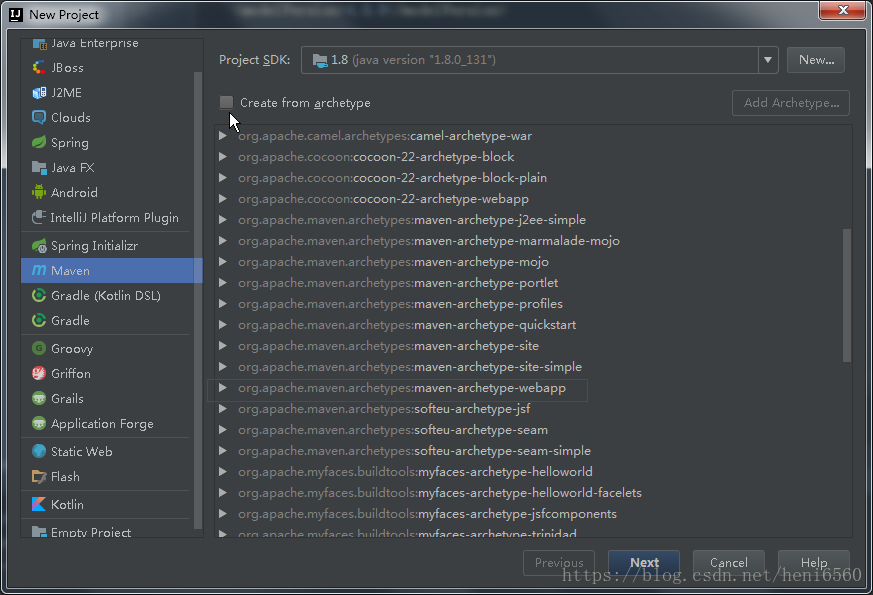

当搭建网页时，该module要为web项目。

pom.xml:

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>dubbo_demo</artifactId>
        <groupId>com.wj</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>
    <groupId>com.wj</groupId>
<artifactId>dubbo_consumer</artifactId>

<name>dubbo_consumer</name>
<!-- FIXME change it to the project's website -->
<url>http://www.example.com</url>

<properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <maven.compiler.source>1.7</maven.compiler.source>
    <maven.compiler.target>1.7</maven.compiler.target>
</properties>

<dependencies>
    <dependency>
        <groupId>com.wj</groupId>
        <artifactId>dubbo_api</artifactId>
        <version>1.0-SNAPSHOT</version>
        <scope>compile</scope>
    </dependency>
</dependencies>
</project>

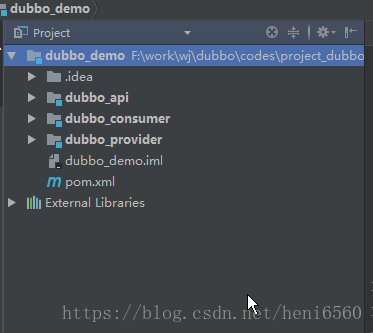

项目结构为：

配置文件和编写代码：

在dubbo_api中定义服务接口：

package com.wj.service;

public interface HelloService {
    String sayHello(String name);
}
在dubbo_provider中实现接口：

package com.wj.impl;

import com.wj.service.HelloService;

public class HelloServiceImpl implements HelloService{
    @Override
    public String sayHello(String name) {
        return "Hello World！";
    }
}

dubbo_provider项目中的resource文件包含dubbo-provider.xml和springmvc.xml配置文件，没有resource，自己新建，并标记为Resources Root

其中dubbo-provider.xml如下：

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:dubbo="http://code.alibabatech.com/schema/dubbo"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
    http://www.springframework.org/schema/beans/spring-beans.xsd
    http://code.alibabatech.com/schema/dubbo
    http://code.alibabatech.com/schema/dubbo/dubbo.xsd">
<!-- 提供方应用信息，用于计算依赖关系 -->
<dubbo:application name="dubbo_provider"  />

<!-- 使用zookeeper注册中心暴露服务地址 -->
<dubbo:registry address="zookeeper://127.0.0.1:2181" />

<!-- 用dubbo协议在20880端口暴露服务 -->
<dubbo:protocol name="dubbo" port="20880" />

<!-- 声明需要暴露的服务接口 -->
<dubbo:service interface="com.wj.service.HelloService" ref="helloService" />

<!-- 接口实现类-->
<bean id="helloService" class="com.wj.impl.HelloServiceImpl"/>
</beans>

springmvc.xml:

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans" xmlns:aop="http://www.springframework.org/schema/aop"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:util="http://www.springframework.org/schema/util" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="http://www.springframework.org/schema/aop
        http://www.springframework.org/schema/aop/spring-aop-4.0.xsd
        http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
        http://www.springframework.org/schema/context
        http://www.springframework.org/schema/context/spring-context-4.0.xsd
        http://www.springframework.org/schema/util
        http://www.springframework.org/schema/util/spring-util-4.0.xsd"
       default-autowire="byName">
<aop:aspectj-autoproxy />
<context:component-scan base-package="com" />
<import resource="classpath:dubbo-provider.xml" />
</beans>

编写测试类:

package com.wj.test;

import org.springframework.context.support.ClassPathXmlApplicationContext;

import java.io.IOException;

public class ProviderTest {
    public static void main(String[] args) {
        ClassPathXmlApplicationContext context = new ClassPathXmlApplicationContext("classpath:springmvc.xml");
        context.start();
        System.out.println("Dubbo provider");
        try {
            System.in.read();   // 按任意键退出
        } catch (IOException e) {
            e.printStackTrace();
        }
    }

}

dubbo_consumer在resource下新建dubbo-consumer.xml:

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:dubbo="http://code.alibabatech.com/schema/dubbo"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd
        http://code.alibabatech.com/schema/dubbo
        http://code.alibabatech.com/schema/dubbo/dubbo.xsd ">
    <!-- 消费方应用名，用于计算依赖关系，不是匹配条件，不要与提供方一样 -->
    <dubbo:application name="dubbo_consumer" />
    <!-- 使用multicast广播注册中心暴露发现服务地址 -->
    <dubbo:registry  protocol="zookeeper" address="zookeeper://127.0.0.1:2181" />
    <!-- 生成远程服务代理，可以和本地bean一样使用demoService -->
    <dubbo:reference id="helloService" interface="com.wj.service.HelloService" />
</beans>

springmvc.xml:

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans" xmlns:aop="http://www.springframework.org/schema/aop"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:util="http://www.springframework.org/schema/util" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="http://www.springframework.org/schema/aop
        http://www.springframework.org/schema/aop/spring-aop-4.0.xsd
        http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
        http://www.springframework.org/schema/context
        http://www.springframework.org/schema/context/spring-context-4.0.xsd
        http://www.springframework.org/schema/util
        http://www.springframework.org/schema/util/spring-util-4.0.xsd"
       default-autowire="byName">
<aop:aspectj-autoproxy />
<context:component-scan base-package="com" />
<import resource="classpath:/dubbo-consumer.xml" />
</beans>

编写消费者的测试：

package com.wj.test;

import com.wj.service.HelloService;
import org.springframework.context.support.ClassPathXmlApplicationContext;

import java.io.IOException;

public class ConsumerTest {
    public static void main(String[] args) {
        ClassPathXmlApplicationContext context = new ClassPathXmlApplicationContext(new String[] { "classpath:springmvc.xml" });
context.start();
    HelloService demoService = (HelloService) context.getBean("helloService");

    System.out.println(demoService.sayHello("Hello World!wj"));
    try {
        System.in.read();
    } catch (IOException e) {
        e.printStackTrace();
    }
}
}

按照先后顺序，首先启动Zookeeper：zkServer.cmd 然后启动服务生产者测试类，最后启动服务消费者的测试类，当控制台输出以下结果，则代表成功。

log4j:WARN No appenders could be found for logger (org.springframework.core.env.StandardEnvironment).
log4j:WARN Please initialize the log4j system properly.
Dubbo provider start…

Process finished with exit code 1
log4j:WARN Please initialize the log4j system properly.
Hello World！
