前一阵子一直在忙着做项目，最近有空，把项目中用到的SpringBoot微服务相关架构再梳理一遍。
项目资源：https://github.com/sunroyi/SpringCloud
主要分为以下几步：
（1）搭建SpringBootService，这里是各个微服务的业务逻辑。（这里搭建了2个Service，用来测试熔断）
（2）搭建SpringBootEureka，用来发现服务。
（3）搭建SpringBootConfig，用于动态维护配置文件。
（4）搭建SpringBootConsumer，这个不是必须的，只有当一个更大的业务需要调用其他多个微服务Service时才需要搭建。
可以通过Ribbon+RestTemplate，Feign两种方式进行微服务之间的调用。可以加入Hystrix进行熔断处理。
（5）搭建SpringBootZuul，用于路由控制。可以加入Hystrix用于熔断处理。
（6）使用Jenkins进行代码的自动化部署。
-—————————————————————————————————————–
在项目搭建之前，需要先了解Spring Cloud中Hystrix、Ribbon以及Feign它们三者之间在处理微服务调用超时从而触发熔断降级的关系。这里我借用一下别人的描述：https://www.jianshu.com/p/31dfb595170c
Ribbon：
它的作用是负载均衡，会帮你在每次请求时选择一台机器，均匀的把请求分发到各个机器上Ribbon的负载均衡默认使用的最经典的Round Robin轮询算法。这是啥？简单来说，就是如果订单服务对库存服务发起10次请求，那就先让你请求第1台机器、然后是第2台机器、第3台机器、第4台机器、第5台机器，接着再来—个循环，第1台机器、第2台机器。。。以此类推。
Feign：
Feign客户端是一个web声明式http远程调用工具，提供了接口和注解方式进行调用（用来调用其他服务）
Feign的一个关键机制就是使用了动态代理。
\1. 首先，如果你对某个接口定义了@FeignClient注解，Feign就会针对这个接口创建一个动态代理
\2. 接着你要是调用那个接口，本质就是会调用 Feign创建的动态代理，这是核心中的核心
\3. Feign的动态代理会根据你在接口上的@RequestMapping等注解，来动态构造出你要请求的服务的地址
\4. 最后针对这个地址，发起请求、解析响应
Hystrix：
在微服务架构里，一个系统会有很多的服务。以本文的业务场景为例：订单服务在一个业务流程里需要调用三个服务。现在假设订单服务自己最多只有100个线程可以处理请求，然后呢，积分服务不幸的挂了，每次订单服务调用积分服务的时候，都会卡住几秒钟，然后抛出—个超时异常。
咱们一起来分析一下，这样会导致什么问题？
\1. 如果系统处于高并发的场景下，大量请求涌过来的时候，订单服务的100个线程都会卡在请求积分服务这块。导致订单服务没有一个线程可以处理请求
\2. 然后就会导致别人请求订单服务的时候，发现订单服务也挂了，不响应任何请求了
上面这个，就是微服务架构中恐怖的服务雪崩问题
这么多服务互相调用，要是不做任何保护的话，某一个服务挂了，就会引起连锁反应，导致别的服务也挂。比如积分服务挂了，会导致订单服务的线程全部卡在请求积分服务这里，没有一个线程可以工作，瞬间导致订单服务也挂了，别人请求订单服务全部会卡住，无法响应。
Hystrix是隔离、熔断以及降级的一个框架。啥意思呢？说白了，Hystrix会搞很多个小小的线程池，比如订单服务请求库存服务是一个线程池，请求仓储服务是一个线程池，请求积分服务是一个线程池。每个线程池里的线程就仅仅用于请求那个服务。
打个比方：现在很不幸，积分服务挂了，会咋样？
当然会导致订单服务里的那个用来调用积分服务的线程都卡死不能工作了啊！但是由于订单服务调用库存服务、仓储服务的这两个线程池都是正常工作的，所以这两个服务不会受到任何影响。
这个时候如果别人请求订单服务，订单服务还是可以正常调用库存服务扣减库存，调用仓储服务通知发货。只不过调用积分服务的时候，每次都会报错。但是如果积分服务都挂了，每次调用都要去卡住几秒钟干啥呢？有意义吗？当然没有！所以我们直接对积分服务熔断不就得了，比如在5分钟内请求积分服务直接就返回了，不要去走网络请求卡住几秒钟，这个过程，就是所谓的熔断！那人家又说，兄弟，积分服务挂了你就熔断，好歹你干点儿什么啊！别啥都不干就直接返回啊？没问题，咱们就来个降级：每次调用积分服务，你就在数据库里记录一条消息，说给某某用户增加了多少积分，因为积分服务挂了，导致没增加成功！这样等积分服务恢复了，你可以根据这些记录手工加一下积分。这个过程，就是所谓的降级。
-—————————————————————————————————————–
我们知道在Spring Cloud微服务体系下，微服务之间的互相调用可以通过Feign进行声明式调用，在这个服务调用过程中Feign会通过Ribbon从服务注册中心获取目标微服务的服务器地址列表，之后在网络请求的过程中Ribbon就会将请求以负载均衡的方式打到微服务的不同实例上，从而实现Spring Cloud微服务架构中最为关键的功能即服务发现及客户端负载均衡调用。
另一方面微服务在互相调用的过程中，为了防止某个微服务的故障消耗掉整个系统所有微服务的连接资源，所以在实施微服务调用的过程中我们会要求在调用方实施针对被调用微服务的熔断逻辑。而要实现这个逻辑场景在Spring Cloud微服务框架下我们是通过Hystrix这个框架来实现的。
调用方会针对被调用微服务设置调用超时时间，一旦超时就会进入熔断逻辑，而这个故障指标信息也会返回给Hystrix组件，Hystrix组件会根据熔断情况判断被调微服务的故障情况从而打开熔断器，之后所有针对该微服务的请求就会直接进入熔断逻辑，直到被调微服务故障恢复，Hystrix断路器关闭为止。
-—————————————————————————————————————–
一. SpringBootService的搭建
1. 创建SpringBoot项目

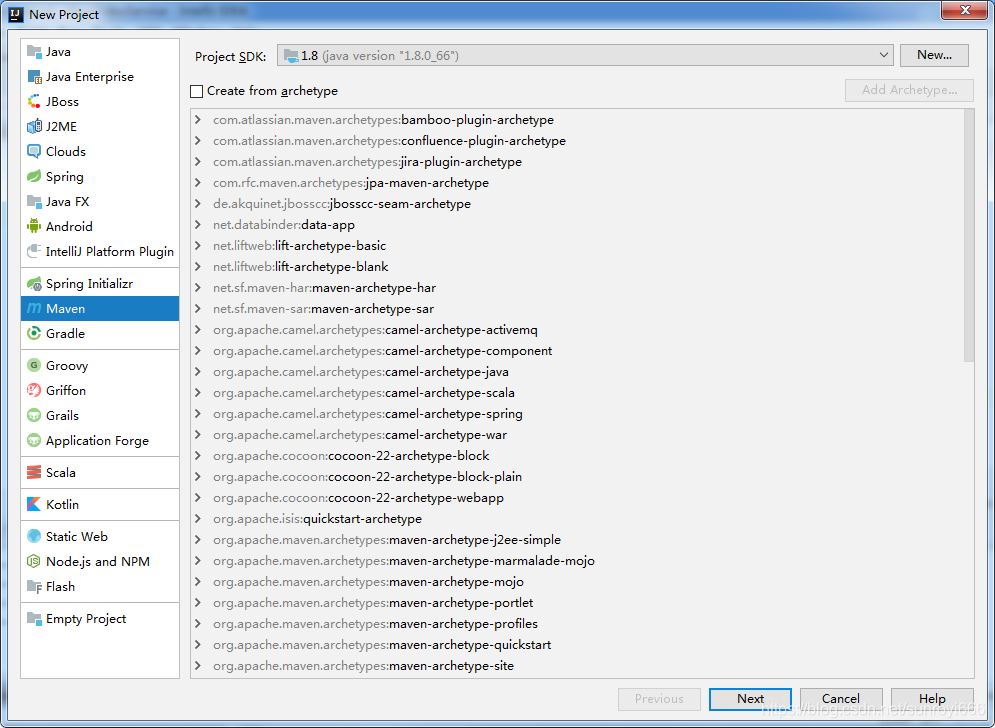

1.1. New Project -> Maven -> Next

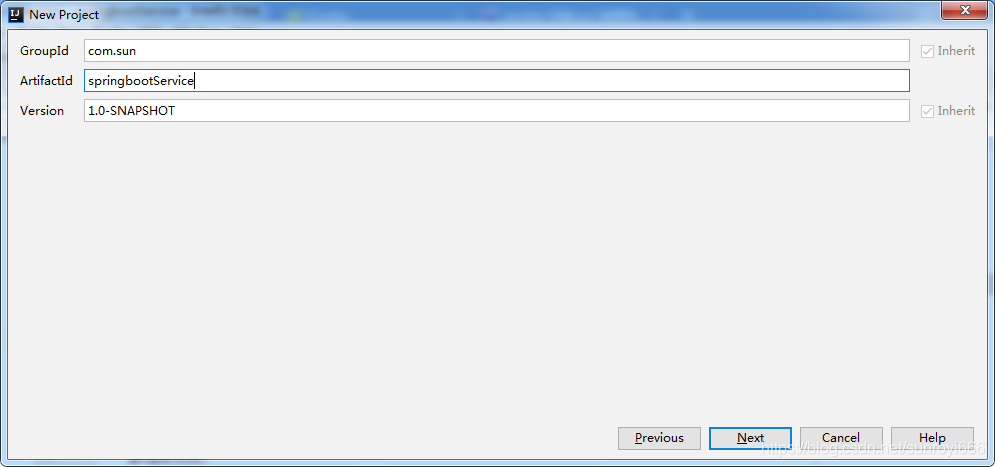

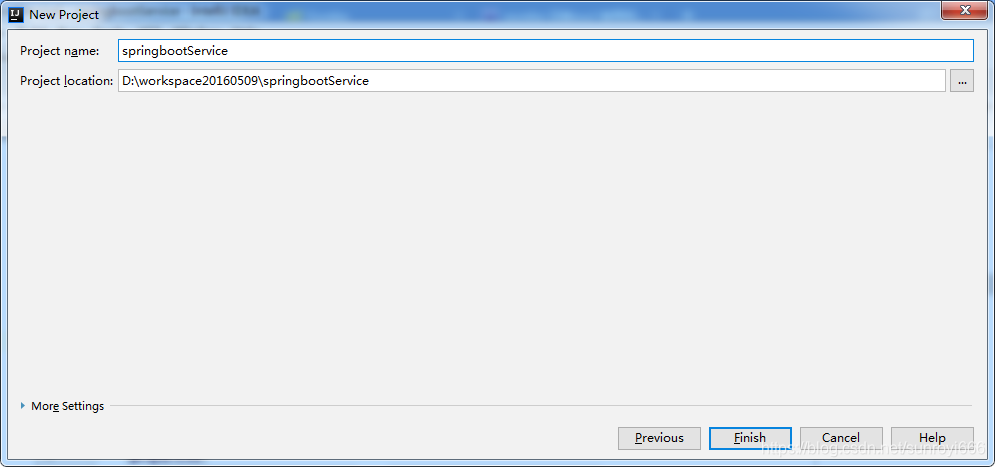

1.2. 输入GroupId，ArtifactId -> Next -> Finish
2. SpringBoot项目的相关配置
2.1. 在pom.xml中加入SpringBoot相关的Jar包
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248 249 250 251 252 253 254 255 256 257 258 259 260 261 262 263 264 265 266 267 268 269 270 271 272 273 274 275 276 277 278 279 280 281 282 283 284 285 286 287 288 289 290 291 292 293 294 295 296 297 298 299 300 301 302 303 304 305 306 307 308 309 310 311 312 313 314 315 316 317 318 319 320 321 322 323 324 325 326 327 328 329 330 331 332 333 334 335 336 337 338 339 340 341 <?xml version="1.0" encoding="UTF-8"?> <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion> <groupId>com.sun</groupId> <artifactId>springbootService</artifactId> <version>1.0-SNAPSHOT</version> <parent> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-parent</artifactId> <version>1.5.8.RELEASE</version> <relativePath /> <!-- lookup parent from repository --> </parent> <properties> <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding> <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding> <java.version>1.8</java.version> <spring-cloud.version>Edgware.SR2</spring-cloud.version> </properties> <dependencies> <dependency> <groupId>org.springframework.boot</groupId> <!-- 添加这个依赖之后就可以创建一个web应用程序。starter poms部分可以引入所有需要在实际项目中使用的依赖。 spring-boot-starter-web依赖包含所有的spring-core, spring-web, spring-webmvc，嵌入的Tomcat server和其他web应用相关的库。 --> <artifactId>spring-boot-starter-web</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-test</artifactId> <scope>test</scope> </dependency> <dependency> <groupId>org.apache.commons</groupId> <artifactId>commons-lang3</artifactId> <version>3.4</version> </dependency> <dependency> <groupId>com.alibaba</groupId> <artifactId>fastjson</artifactId> <version>1.2.7</version> </dependency> <dependency> <groupId>com.fasterxml.jackson.module</groupId> <artifactId>jackson-module-jaxb-annotations</artifactId> </dependency> <dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId> <version>1.4.0.RELEASE</version> </dependency> <!--Spring Cloud Config 客户端依赖--> <dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-starter-config</artifactId> <version>1.4.0.RELEASE</version> </dependency> <!--Spring Boot Actuator，感应服务端变化--> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-actuator</artifactId> </dependency> </dependencies> <build> <plugins> <plugin> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-maven-plugin</artifactId> </plugin> </plugins> </build> </project>
2.2. 在resources中添加application.properties，这个文件用来进行 项目的相关配置
1 2 3 4 5 6 7 8 9 spring.application.name=springbootService server.port=6001
3. 项目结构和代码

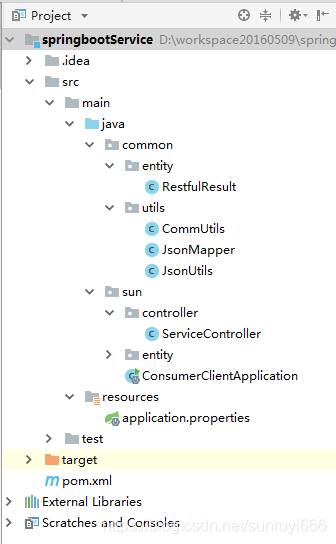

3.1. 项目目录结构
其中，common目录下是一些共通代码，我这里直接拿过来用了。
sun下面的controller提供对外接口，entity定义实体类。
ComsumerClientApplication在sun目录下，是SpringBoot项目的启动文件。
3.2. 相关Java代码
（1）ComsumerClientApplication.java
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 package sun; import org.springframework.boot.SpringApplication; import org.springframework.boot.autoconfigure.SpringBootApplication; import org.springframework.boot.web.servlet.ServletComponentScan; @SpringBootApplication @ServletComponentScan @EnableDiscoveryClient @RefreshScope //开启配置更新功能 public class ConsumerClientApplication { public static void main(String[] args) { SpringApplication.run(ConsumerClientApplication.class, args); } }
（2）ServiceController.java
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 /** * Copyright © 2012-2014 <a href="https://github.com/thinkgem/jeesite">JeeSite</a> All rights reserved. */ package sun.controller; import common.entity.RestfulResult; import common.utils.CommUtils; import org.springframework.web.bind.annotation.RequestBody; import org.springframework.web.bind.annotation.RequestMapping; import org.springframework.web.bind.annotation.RestController; import sun.entity.ServiceInfo; import javax.servlet.http.HttpServletRequest; import javax.servlet.http.HttpServletResponse; @RestController // 重要，如果用Controller会404 @RequestMapping(value = "service") public class ServiceController { @RequestMapping(value = "hello") public void login(HttpServletRequest request, HttpServletResponse response, @RequestBody ServiceInfo serviceInfo) { RestfulResult restfulResult = new RestfulResult(); try { restfulResult.setData("Service1:Welcome " + serviceInfo.getName() + "!"); } catch (Exception e) { e.printStackTrace(); } CommUtils.printDataJason(response, restfulResult); } @RequestMapping(value = "rest") public String rest(@RequestBody ServiceInfo serviceInfo){ return "Service1:Welcome " + serviceInfo.getName() + " !"; } }
（3）ServiceInfo.java
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 package sun.entity; public class ServiceInfo { private static final long serialVersionUID = 1L; private String name; public String getName() { return name; } public void setName(String name) { this.name = name; } }
（4）RestfulResult.java
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 package common.entity; public class RestfulResult { private String result = "Success"; private String message; private Object data; // 返回数据 private int cntPage; // page数 private long cntData; // 返回数据总数 public String getResult() { return result; } public void setResult(String result) { this.result = result; } public String getMessage() { return message; } public void setMessage(String message) { this.message = message; } public Object getData() { return data; } public void setData(Object data) { this.data = data; } public int getCntPage() { return cntPage; } public void setCntPage(int cntPage) { this.cntPage = cntPage; } public long getCntData() { return cntData; } public void setCntData(long cntData) { this.cntData = cntData; } }
（5）CommonUtils.java
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 package common.utils; import javax.servlet.http.HttpServletResponse; public class CommUtils { // JSON格式化 public static String printDataJason(HttpServletResponse response, Object item) { try { JsonUtils.renderString(response, item); } catch (Exception e) { e.printStackTrace(); } return null; } /** * 随机生成6位随机验证码 * */ public static String createRandomVcode(int len) { // 验证码 String vcode = ""; for (int i = 0; i < len; i++) { vcode = vcode + (int) (Math.random() * 9); } return vcode; } }
（6）JsonUtils.java
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 package common.utils; import javax.servlet.http.HttpServletResponse; import java.io.IOException; public class JsonUtils { public JsonUtils() { } public static String renderString(HttpServletResponse response, Object object) { return renderString(response, JsonMapper.toJsonString(object), "application/json"); } public static String renderString(HttpServletResponse response, String string, String type) { try { response.setContentType(type); response.setCharacterEncoding("utf-8"); response.getWriter().print(string); return null; } catch (IOException var4) { return null; } } }
（7）JsonMapper.java
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248 249 250 251 252 253 254 255 256 257 258 259 260 261 262 263 264 265 266 267 268 269 270 271 272 273 274 275 276 277 278 279 280 281 282 283 284 285 286 287 288 289 290 291 292 293 294 295 296 297 298 299 300 301 302 303 304 305 306 307 308 309 310 311 312 313 314 315 316 317 318 319 320 321 322 323 324 325 326 327 328 329 330 331 332 333 334 335 336 337 338 339 340 341 342 343 344 345 346 347 348 349 350 351 352 353 354 355 356 357 358 359 360 361 362 363 364 365 366 367 368 369 370 371 372 373 374 375 376 377 378 379 380 381 382 383 384 385 386 387 388 389 390 391 392 393 394 395 396 397 398 399 400 401 402 403 404 405 406 407 408 409 410 411 412 413 414 415 416 417 418 419 420 421 422 423 424 425 426 427 428 429 430 431 432 433 434 435 436 437 438 439 440 441 442 443 444 445 446 447 448 449 450 451 452 453 454 455 456 457 458 459 460 461 462 463 464 465 466 467 468 469 470 471 472 473 474 475 476 477 478 479 480 481 482 483 484 485 486 487 488 489 490 491 492 493 494 495 496 497 498 499 500 501 502 503 504 505 506 507 508 509 510 511 512 513 514 515 516 517 518 519 520 521 522 523 524 525 526 527 528 529 530 531 532 533 534 535 536 537 538 539 540 541 542 543 544 545 546 547 548 549 550 551 552 553 554 555 556 557 558 559 560 561 562 563 564 565 566 567 568 569 570 571 572 573 574 575 576 577 578 579 580 581 582 583 584 585 586 587 588 589 package common.utils; import com.fasterxml.jackson.annotation.JsonInclude.Include; import com.fasterxml.jackson.core.JsonGenerator; import com.fasterxml.jackson.core.JsonParser.Feature; import com.fasterxml.jackson.core.JsonProcessingException; import com.fasterxml.jackson.databind.*; import com.fasterxml.jackson.databind.module.SimpleModule; import com.fasterxml.jackson.databind.util.JSONPObject; import com.fasterxml.jackson.module.jaxb.JaxbAnnotationModule; import org.apache.commons.lang3.StringEscapeUtils; import org.apache.commons.lang3.StringUtils; import org.slf4j.Logger; import org.slf4j.LoggerFactory; import java.io.IOException; import java.util.TimeZone; public class JsonMapper extends ObjectMapper { private static final long serialVersionUID = 1L; private static Logger logger = LoggerFactory.getLogger(JsonMapper.class); private static JsonMapper mapper; public JsonMapper() { this(Include.NON_EMPTY); } public JsonMapper(Include include) { if (include != null) { this.setSerializationInclusion(include); } this.enableSimple(); this.disable(DeserializationFeature.FAIL_ON_UNKNOWN_PROPERTIES); this.getSerializerProvider().setNullValueSerializer(new JsonSerializer<Object>() { public void serialize(Object value, JsonGenerator jgen, SerializerProvider provider) throws IOException, JsonProcessingException { jgen.writeString(""); } }); this.registerModule((new SimpleModule()).addSerializer(String.class, new JsonSerializer<String>() { public void serialize(String value, JsonGenerator jgen, SerializerProvider provider) throws IOException, JsonProcessingException { jgen.writeString(StringEscapeUtils.unescapeHtml4(value)); } })); this.setTimeZone(TimeZone.getDefault()); } public static JsonMapper getInstance() { if (mapper == null) { mapper = (new JsonMapper()).enableSimple(); } return mapper; } public static JsonMapper nonDefaultMapper() { if (mapper == null) { mapper = new JsonMapper(Include.NON_DEFAULT); } return mapper; } public String toJson(Object object) { try { return this.writeValueAsString(object); } catch (IOException var3) { logger.warn("write to json string error:" + object, var3); return null; } } public <T> T fromJson(String jsonString, Class<T> clazz) { if (StringUtils.isEmpty(jsonString)) { return null; } else { try { return this.readValue(jsonString, clazz); } catch (IOException var4) { logger.warn("parse json string error:" + jsonString, var4); return null; } } } public <T> T fromJson(String jsonString, JavaType javaType) { if (StringUtils.isEmpty(jsonString)) { return null; } else { try { return this.readValue(jsonString, javaType); } catch (IOException var4) { logger.warn("parse json string error:" + jsonString, var4); return null; } } } public JavaType createCollectionType(Class<?> collectionClass, Class... elementClasses) { return this.getTypeFactory().constructParametricType(collectionClass, elementClasses); } public <T> T update(String jsonString, T object) { try { return this.readerForUpdating(object).readValue(jsonString); } catch (JsonProcessingException var4) { logger.warn("update json string:" + jsonString + " to object:" + object + " error.", var4); } catch (IOException var5) { logger.warn("update json string:" + jsonString + " to object:" + object + " error.", var5); } return null; } public String toJsonP(String functionName, Object object) { return this.toJson(new JSONPObject(functionName, object)); } public JsonMapper enableEnumUseToString() { this.enable(SerializationFeature.WRITE_ENUMS_USING_TO_STRING); this.enable(DeserializationFeature.READ_ENUMS_USING_TO_STRING); return this; } public JsonMapper enableJaxbAnnotation() { JaxbAnnotationModule module = new JaxbAnnotationModule(); this.registerModule(module); return this; } public JsonMapper enableSimple() { this.configure(Feature.ALLOW_SINGLE_QUOTES, true); this.configure(Feature.ALLOW_UNQUOTED_FIELD_NAMES, true); return this; } public ObjectMapper getMapper() { return this; } public static String toJsonString(Object object) { return getInstance().toJson(object); } public static Object fromJsonString(String jsonString, Class<?> clazz) { return getInstance().fromJson(jsonString, clazz); } }
4. 项目启动和测试

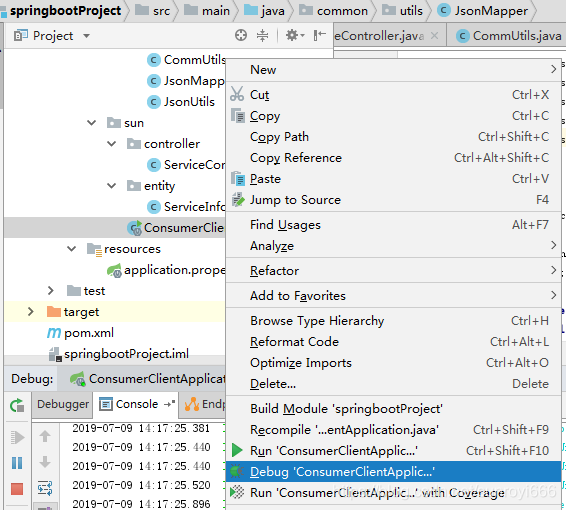

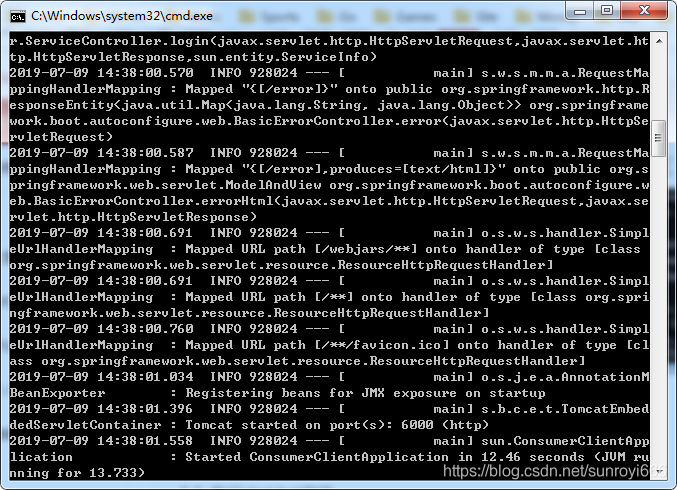

4.1. 运行Debug，启动ConsumerClientApplication.java
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 "C:\Program Files\Java\jdk1.8.0_66\bin\java" -agentlib:jdwp=transport=dt_socket,address=127.0.0.1:54364,suspend=y,server=n -XX:TieredStopAtLevel=1 -noverify -Dspring.output.ansi.enabled=always -Dcom.sun.management.jmxremote -Dcom.sun.management.jmxremote.port=54362 -Dcom.sun.management.jmxremote.authenticate=false -Dcom.sun.management.jmxremote.ssl=false -Djava.rmi.server.hostname=localhost -Dspring.liveBeansView.mbeanDomain -Dspring.application.admin.enabled=true -javaagent:D:\ideaIU-2018.1.win\lib\rt\debugger-agent.jar=file:/C:/Users/Administrator/AppData/Local/Temp/capture607016.props -Dfile.encoding=UTF-8 -classpath "C:\Program Files\Java\jdk1.8.0_66\jre\lib\charsets.jar;C:\Program Files\Java\jdk1.8.0_66\jre\lib\deploy.jar;C:\Program Files\Java\jdk1.8.0_66\jre\lib\ext\access-bridge-64.jar;C:\Program Files\Java\jdk1.8.0_66\jre\lib\ext\cldrdata.jar;C:\Program Files\Java\jdk1.8.0_66\jre\lib\ext\dnsns.jar;C:\Program Files\Java\jdk1.8.0_66\jre\lib\ext\jaccess.jar;C:\Program Files\Java\jdk1.8.0_66\jre\lib\ext\jfxrt.jar;C:\Program Files\Java\jdk1.8.0_66\jre\lib\ext\localedata.jar;C:\Program Files\Java\jdk1.8.0_66\jre\lib\ext\nashorn.jar;C:\Program Files\Java\jdk1.8.0_66\jre\lib\ext\sunec.jar;C:\Program Files\Java\jdk1.8.0_66\jre\lib\ext\sunjce_provider.jar;C:\Program Files\Java\jdk1.8.0_66\jre\lib\ext\sunmscapi.jar;C:\Program Files\Java\jdk1.8.0_66\jre\lib\ext\sunpkcs11.jar;C:\Program Files\Java\jdk1.8.0_66\jre\lib\ext\zipfs.jar;C:\Program Files\Java\jdk1.8.0_66\jre\lib\javaws.jar;C:\Program Files\Java\jdk1.8.0_66\jre\lib\jce.jar;C:\Program Files\Java\jdk1.8.0_66\jre\lib\jfr.jar;C:\Program Files\Java\jdk1.8.0_66\jre\lib\jfxswt.jar;C:\Program Files\Java\jdk1.8.0_66\jre\lib\jsse.jar;C:\Program Files\Java\jdk1.8.0_66\jre\lib\management-agent.jar;C:\Program Files\Java\jdk1.8.0_66\jre\lib\plugin.jar;C:\Program Files\Java\jdk1.8.0_66\jre\lib\resources.jar;C:\Program Files\Java\jdk1.8.0_66\jre\lib\rt.jar;D:\workspace20160509\springbootService\target\classes;C:\Users\Administrator\.m2\repository\org\springframework\boot\spring-boot-starter-web\1.5.8.RELEASE\spring-boot-starter-web-1.5.8.RELEASE.jar;C:\Users\Administrator\.m2\repository\org\springframework\boot\spring-boot-starter\1.5.8.RELEASE\spring-boot-starter-1.5.8.RELEASE.jar;C:\Users\Administrator\.m2\repository\org\springframework\boot\spring-boot\1.5.8.RELEASE\spring-boot-1.5.8.RELEASE.jar;C:\Users\Administrator\.m2\repository\org\springframework\boot\spring-boot-autoconfigure\1.5.8.RELEASE\spring-boot-autoconfigure-1.5.8.RELEASE.jar;C:\Users\Administrator\.m2\repository\org\springframework\boot\spring-boot-starter-logging\1.5.8.RELEASE\spring-boot-starter-logging-1.5.8.RELEASE.jar;C:\Users\Administrator\.m2\repository\ch\qos\logback\logback-classic\1.1.11\logback-classic-1.1.11.jar;C:\Users\Administrator\.m2\repository\ch\qos\logback\logback-core\1.1.11\logback-core-1.1.11.jar;C:\Users\Administrator\.m2\repository\org\slf4j\jcl-over-slf4j\1.7.25\jcl-over-slf4j-1.7.25.jar;C:\Users\Administrator\.m2\repository\org\slf4j\jul-to-slf4j\1.7.25\jul-to-slf4j-1.7.25.jar;C:\Users\Administrator\.m2\repository\org\slf4j\log4j-over-slf4j\1.7.25\log4j-over-slf4j-1.7.25.jar;C:\Users\Administrator\.m2\repository\org\yaml\snakeyaml\1.17\snakeyaml-1.17.jar;C:\Users\Administrator\.m2\repository\org\springframework\boot\spring-boot-starter-tomcat\1.5.8.RELEASE\spring-boot-starter-tomcat-1.5.8.RELEASE.jar;C:\Users\Administrator\.m2\repository\org\apache\tomcat\embed\tomcat-embed-core\8.5.23\tomcat-embed-core-8.5.23.jar;C:\Users\Administrator\.m2\repository\org\apache\tomcat\tomcat-annotations-api\8.5.23\tomcat-annotations-api-8.5.23.jar;C:\Users\Administrator\.m2\repository\org\apache\tomcat\embed\tomcat-embed-el\8.5.23\tomcat-embed-el-8.5.23.jar;C:\Users\Administrator\.m2\repository\org\apache\tomcat\embed\tomcat-embed-websocket\8.5.23\tomcat-embed-websocket-8.5.23.jar;C:\Users\Administrator\.m2\repository\org\hibernate\hibernate-validator\5.3.5.Final\hibernate-validator-5.3.5.Final.jar;C:\Users\Administrator\.m2\repository\javax\validation\validation-api\1.1.0.Final\validation-api-1.1.0.Final.jar;C:\Users\Administrator\.m2\repository\org\jboss\logging\jboss-logging\3.3.1.Final\jboss-logging-3.3.1.Final.jar;C:\Users\Administrator\.m2\repository\com\fasterxml\classmate\1.3.4\classmate-1.3.4.jar;C:\Users\Administrator\.m2\repository\com\fasterxml\jackson\core\jackson-databind\2.8.10\jackson-databind-2.8.10.jar;C:\Users\Administrator\.m2\repository\org\springframework\spring-web\4.3.12.RELEASE\spring-web-4.3.12.RELEASE.jar;C:\Users\Administrator\.m2\repository\org\springframework\spring-aop\4.3.12.RELEASE\spring-aop-4.3.12.RELEASE.jar;C:\Users\Administrator\.m2\repository\org\springframework\spring-beans\4.3.12.RELEASE\spring-beans-4.3.12.RELEASE.jar;C:\Users\Administrator\.m2\repository\org\springframework\spring-context\4.3.12.RELEASE\spring-context-4.3.12.RELEASE.jar;C:\Users\Administrator\.m2\repository\org\springframework\spring-webmvc\4.3.12.RELEASE\spring-webmvc-4.3.12.RELEASE.jar;C:\Users\Administrator\.m2\repository\org\springframework\spring-expression\4.3.12.RELEASE\spring-expression-4.3.12.RELEASE.jar;C:\Users\Administrator\.m2\repository\org\slf4j\slf4j-api\1.7.25\slf4j-api-1.7.25.jar;C:\Users\Administrator\.m2\repository\org\springframework\spring-core\4.3.12.RELEASE\spring-core-4.3.12.RELEASE.jar;C:\Users\Administrator\.m2\repository\org\apache\commons\commons-lang3\3.4\commons-lang3-3.4.jar;C:\Users\Administrator\.m2\repository\com\alibaba\fastjson\1.2.7\fastjson-1.2.7.jar;C:\Users\Administrator\.m2\repository\com\fasterxml\jackson\module\jackson-module-jaxb-annotations\2.8.10\jackson-module-jaxb-annotations-2.8.10.jar;C:\Users\Administrator\.m2\repository\com\fasterxml\jackson\core\jackson-core\2.8.10\jackson-core-2.8.10.jar;C:\Users\Administrator\.m2\repository\com\fasterxml\jackson\core\jackson-annotations\2.8.0\jackson-annotations-2.8.0.jar;D:\ideaIU-2018.1.win\lib\idea_rt.jar" sun.ConsumerClientApplication Connected to the target VM, address: '127.0.0.1:54364', transport: 'socket' . ____ _ __ _ _ /\\ / ___'_ __ _ _(_)_ __ __ _ \ \ \ \ ( ( )\___ | '_ | '_| | '_ \/ _` | \ \ \ \ \\/ ___)| |_)| | | | | || (_| | ) ) ) ) ' |____| .__|_| |_|_| |_\__, | / / / / =========|_|==============|___/=/_/_/_/ :: Spring Boot :: (v1.5.8.RELEASE) 2019-07-09 14:17:10.710 INFO 923048 --- [ main] sun.ConsumerClientApplication : Starting ConsumerClientApplication on PC-Sun with PID 923048 (D:\workspace20160509\springbootService\target\classes started by Administrator in D:\workspace20160509\springbootPService) 2019-07-09 14:17:10.763 INFO 923048 --- [ main] sun.ConsumerClientApplication : No active profile set, falling back to default profiles: default 2019-07-09 14:17:11.754 INFO 923048 --- [ main] ationConfigEmbeddedWebApplicationContext : Refreshing org.springframework.boot.context.embedded.AnnotationConfigEmbeddedWebApplicationContext@5db6b9cd: startup date [Tue Jul 09 14:17:11 CST 2019]; root of context hierarchy 2019-07-09 14:17:22.203 INFO 923048 --- [ main] s.b.c.e.t.TomcatEmbeddedServletContainer : Tomcat initialized with port(s): 6000 (http) 2019-07-09 14:17:22.285 INFO 923048 --- [ main] o.apache.catalina.core.StandardService : Starting service [Tomcat] 2019-07-09 14:17:22.312 INFO 923048 --- [ main] org.apache.catalina.core.StandardEngine : Starting Servlet Engine: Apache Tomcat/8.5.23 2019-07-09 14:17:23.143 INFO 923048 --- [ost-startStop-1] o.a.c.c.C.[Tomcat].[localhost].[/] : Initializing Spring embedded WebApplicationContext 2019-07-09 14:17:23.145 INFO 923048 --- [ost-startStop-1] o.s.web.context.ContextLoader : Root WebApplicationContext: initialization completed in 11433 ms 2019-07-09 14:17:24.072 INFO 923048 --- [ost-startStop-1] o.s.b.w.servlet.ServletRegistrationBean : Mapping servlet: 'dispatcherServlet' to [/] 2019-07-09 14:17:24.089 INFO 923048 --- [ost-startStop-1] o.s.b.w.servlet.FilterRegistrationBean : Mapping filter: 'characterEncodingFilter' to: [/*] 2019-07-09 14:17:24.091 INFO 923048 --- [ost-startStop-1] o.s.b.w.servlet.FilterRegistrationBean : Mapping filter: 'hiddenHttpMethodFilter' to: [/*] 2019-07-09 14:17:24.092 INFO 923048 --- [ost-startStop-1] o.s.b.w.servlet.FilterRegistrationBean : Mapping filter: 'httpPutFormContentFilter' to: [/*] 2019-07-09 14:17:24.092 INFO 923048 --- [ost-startStop-1] o.s.b.w.servlet.FilterRegistrationBean : Mapping filter: 'requestContextFilter' to: [/*] 2019-07-09 14:17:25.239 INFO 923048 --- [ main] s.w.s.m.m.a.RequestMappingHandlerAdapter : Looking for @ControllerAdvice: org.springframework.boot.context.embedded.AnnotationConfigEmbeddedWebApplicationContext@5db6b9cd: startup date [Tue Jul 09 14:17:11 CST 2019]; root of context hierarchy 2019-07-09 14:17:25.376 INFO 923048 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/service/hello]}" onto public void sun.controller.ServiceController.login(javax.servlet.http.HttpServletRequest,javax.servlet.http.HttpServletResponse,sun.entity.ServiceInfo) 2019-07-09 14:17:25.380 INFO 923048 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/error]}" onto public org.springframework.http.ResponseEntity<java.util.Map<java.lang.String, java.lang.Object>> org.springframework.boot.autoconfigure.web.BasicErrorController.error(javax.servlet.http.HttpServletRequest) 2019-07-09 14:17:25.381 INFO 923048 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/error],produces=[text/html]}" onto public org.springframework.web.servlet.ModelAndView org.springframework.boot.autoconfigure.web.BasicErrorController.errorHtml(javax.servlet.http.HttpServletRequest,javax.servlet.http.HttpServletResponse) 2019-07-09 14:17:25.440 INFO 923048 --- [ main] o.s.w.s.handler.SimpleUrlHandlerMapping : Mapped URL path [/webjars/**] onto handler of type [class org.springframework.web.servlet.resource.ResourceHttpRequestHandler] 2019-07-09 14:17:25.440 INFO 923048 --- [ main] o.s.w.s.handler.SimpleUrlHandlerMapping : Mapped URL path [/**] onto handler of type [class org.springframework.web.servlet.resource.ResourceHttpRequestHandler] 2019-07-09 14:17:25.520 INFO 923048 --- [ main] o.s.w.s.handler.SimpleUrlHandlerMapping : Mapped URL path [/**/favicon.ico] onto handler of type [class org.springframework.web.servlet.resource.ResourceHttpRequestHandler] 2019-07-09 14:17:25.896 INFO 923048 --- [ main] o.s.j.e.a.AnnotationMBeanExporter : Registering beans for JMX exposure on startup 2019-07-09 14:17:26.094 INFO 923048 --- [ main] s.b.c.e.t.TomcatEmbeddedServletContainer : Tomcat started on port(s): 6000 (http) 2019-07-09 14:17:26.100 INFO 923048 --- [ main] sun.ConsumerClientApplication : Started ConsumerClientApplication in 17.811 seconds (JVM running for 28.604)

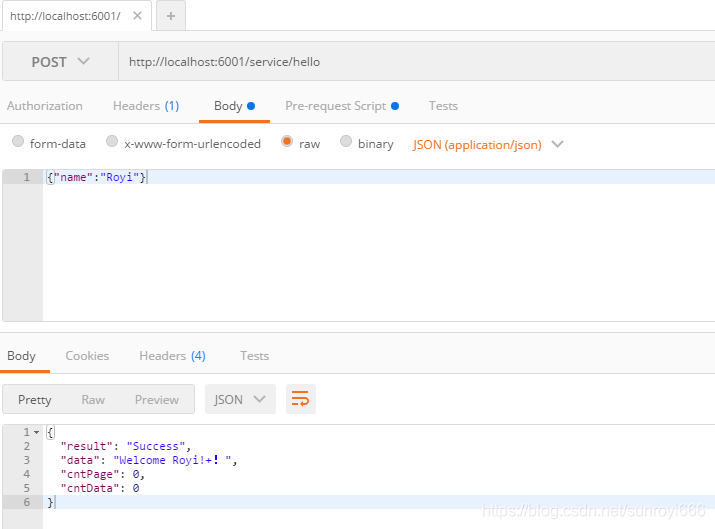

4.2. 调用localhost:6001/service/hello来测试
5. 项目打包和执行
5.1. 打包

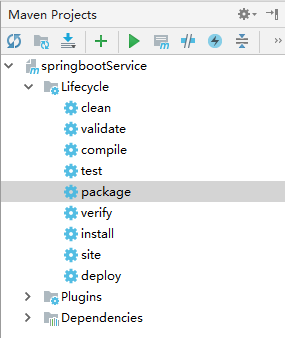

Maven Projects -> package
执行结果：
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 [INFO] --- maven-jar-plugin:2.6:jar (default-jar) @ springbootService --- [INFO] Building jar: D:\workspace20160509\springbootService\target\springbootService-1.0-SNAPSHOT.jar [INFO] [INFO] --- spring-boot-maven-plugin:1.5.8.RELEASE:repackage (default) @ springbootService --- [INFO] ------------------------------------------------------------------------ [INFO] BUILD SUCCESS [INFO] ------------------------------------------------------------------------ [INFO] Total time: 26.847 s [INFO] Finished at: 2019-07-09T14:36:54+08:00 [INFO] Final Memory: 29M/250M [INFO] ------------------------------------------------------------------------ Process finished with exit code 0

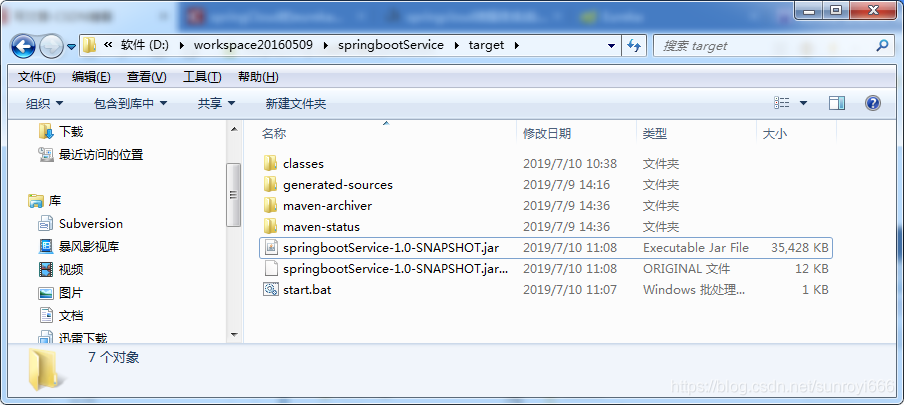

找到jar包目录，创建start.bat文件
start.bat内容：
1 java -jar springbootService-1.0-SNAPSHOT.jar

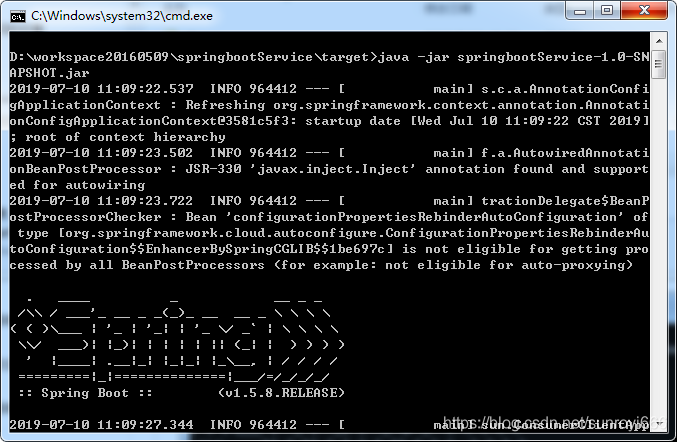

5.2. 执行start.bat启动
6. 项目复制
为了在下面测试Hystrix熔断，这里复制一份springbootService2项目，区别有两个地方：
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 ServiceController： /** * Copyright © 2012-2014 <a href ="https://github.com/thinkgem/jeesite" > JeeSite</a > All rights reserved. */ package sun.controller; import common.entity.RestfulResult; import common.utils.CommUtils; import org.springframework.web.bind.annotation.RequestBody; import org.springframework.web.bind.annotation.RequestMapping; import org.springframework.web.bind.annotation.RestController; import sun.entity.ServiceInfo; import javax.servlet.http.HttpServletRequest; import javax.servlet.http.HttpServletResponse; @RestController // 重要，如果用Controller会404 @RequestMapping(value = "service") public class ServiceController { @RequestMapping(value = "hello") public void login(HttpServletRequest request, HttpServletResponse response, @RequestBody ServiceInfo serviceInfo) { RestfulResult restfulResult = new RestfulResult(); try { restfulResult.setData("Service2:Welcome " + serviceInfo.getName() + "!"); } catch (Exception e) { e.printStackTrace(); } CommUtils.printDataJason(response, restfulResult); } @RequestMapping(value = "rest") public String rest(@RequestBody ServiceInfo serviceInfo){ return "Service2:Welcome " + serviceInfo.getName() + " !"; } }
application.properties：
1 2 3 4 5 6 7 8 9 10 11 12 13 spring.application.name=springbootService server.port=6006 eureka.client.service-url.defaultZone=http://localhost:5000/eureka/
二. 搭建Eureka
1. 创建Maven项目springbootEureka
同springbootService

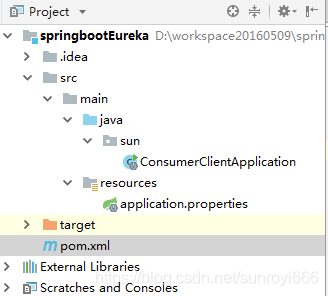

2. 项目结构和代码
pom.xml
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 <?xml version="1.0" encoding="UTF-8"?> <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion> <groupId>com.sun</groupId> <artifactId>springbootEureka</artifactId> <version>1.0-SNAPSHOT</version> <parent> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-parent</artifactId> <version>1.5.12.RELEASE</version> </parent> <properties> <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding> <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding> <java.version>1.8</java.version> <spring-cloud.version>Edgware.RELEASE</spring-cloud.version> </properties> <dependencies> <dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-starter-eureka-server</artifactId> <version>1.3.5.RELEASE</version> </dependency> </dependencies> </project>
application.properties
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 server.port=5000 eureka.instance.hostname=localhost #是否向服务注册中心注册自己,默认为true eureka.client.register-with-eureka=false #是否检索服务 eureka.client.fetch-registry=true eureka.client.serviceUrl.defaultZone=http://${eureka.instance.hostname}:${server.port}/eureka/
ConsumerClientApplication.java
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 package sun; import org.springframework.boot.SpringApplication; import org.springframework.boot.autoconfigure.SpringBootApplication; import org.springframework.cloud.netflix.eureka.server.EnableEurekaServer; @SpringBootApplication @EnableEurekaServer public class ConsumerClientApplication { public static void main(String[] args) { SpringApplication.run(ConsumerClientApplication.class, args); } }
3. 启动Eureka
3.1. 运行Debug，启动ConsumerClientApplication.java

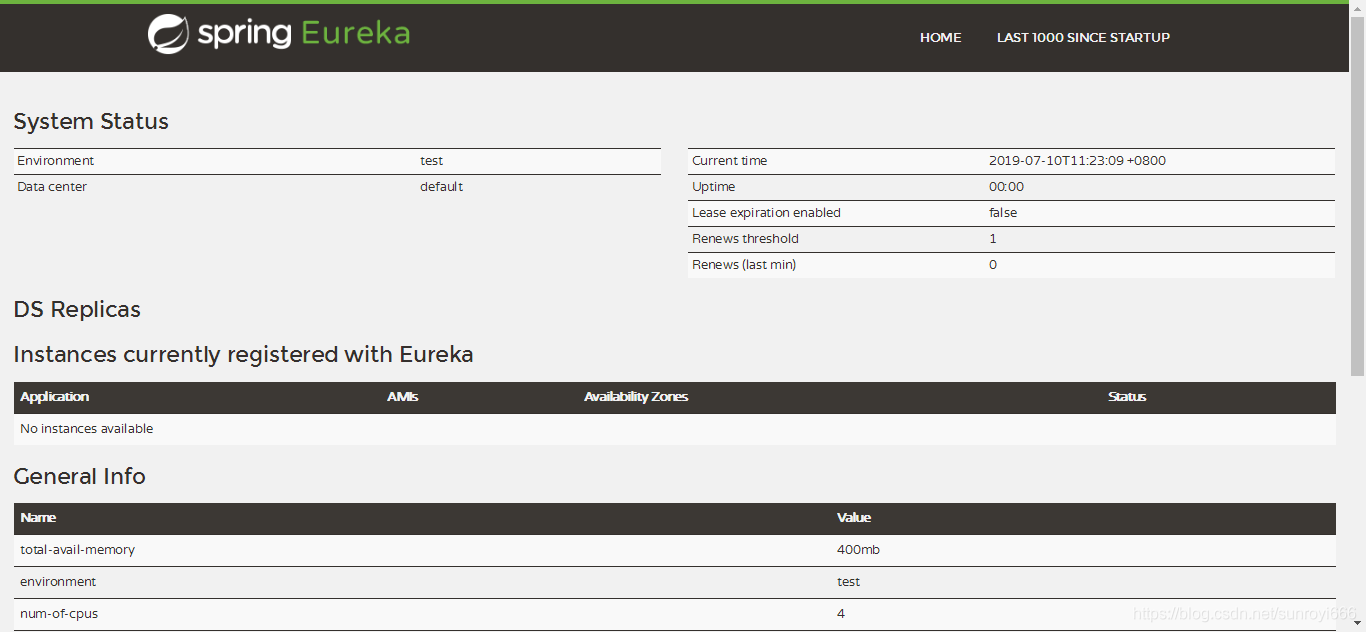

3.2. 打开http://localhost:5000，表示正常启动
4. 修改springbootService，使Eureka可以发现此服务
pom.xml中增加
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 <dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId> <version>1.4.0.RELEASE</version> </dependency>
application.properties中增加
1 eureka.client.service-url.defaultZone=http://localhost:5000/eureka/
ConsumerClientApplication.java中增加
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 @EnableDiscoveryClient package sun; import org.springframework.boot.SpringApplication; import org.springframework.boot.autoconfigure.SpringBootApplication; import org.springframework.boot.web.servlet.ServletComponentScan; import org.springframework.cloud.client.discovery.EnableDiscoveryClient; @SpringBootApplication @ServletComponentScan @EnableDiscoveryClient public class ConsumerClientApplication { public static void main(String[] args) { SpringApplication.run(ConsumerClientApplication.class, args); } }

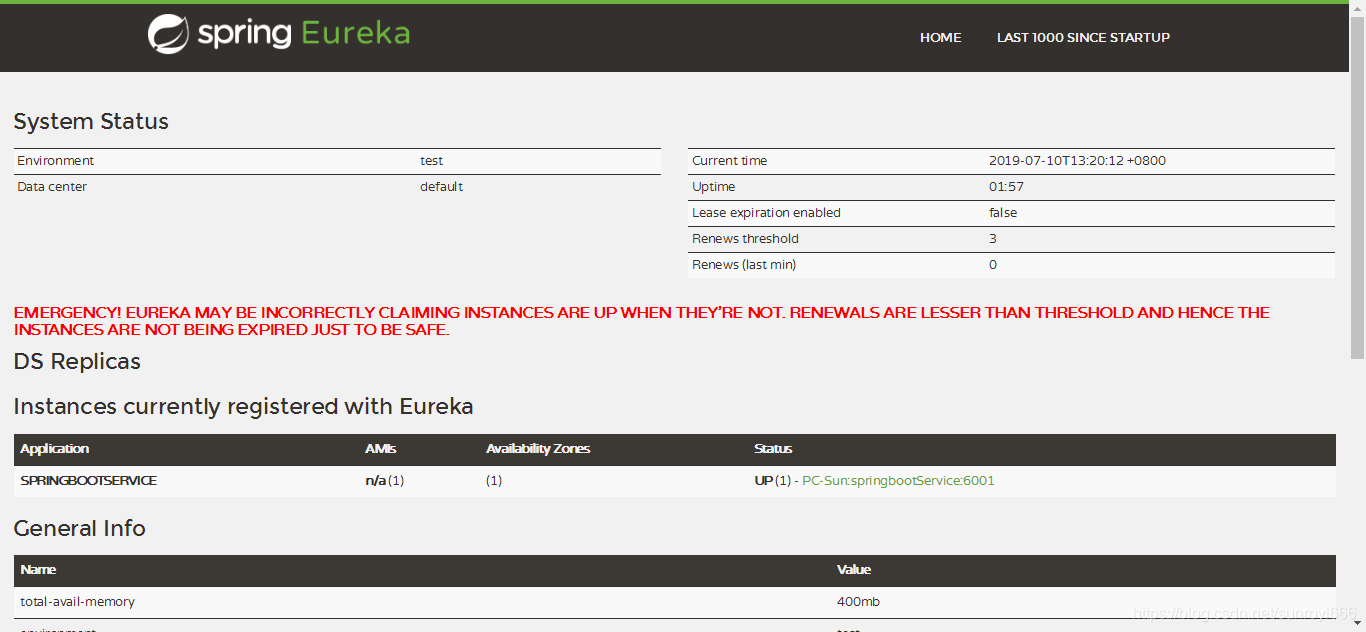

启动后，在Eureka中可以看到springbootService已注册
三. 搭建SpringBootConfig配置中心

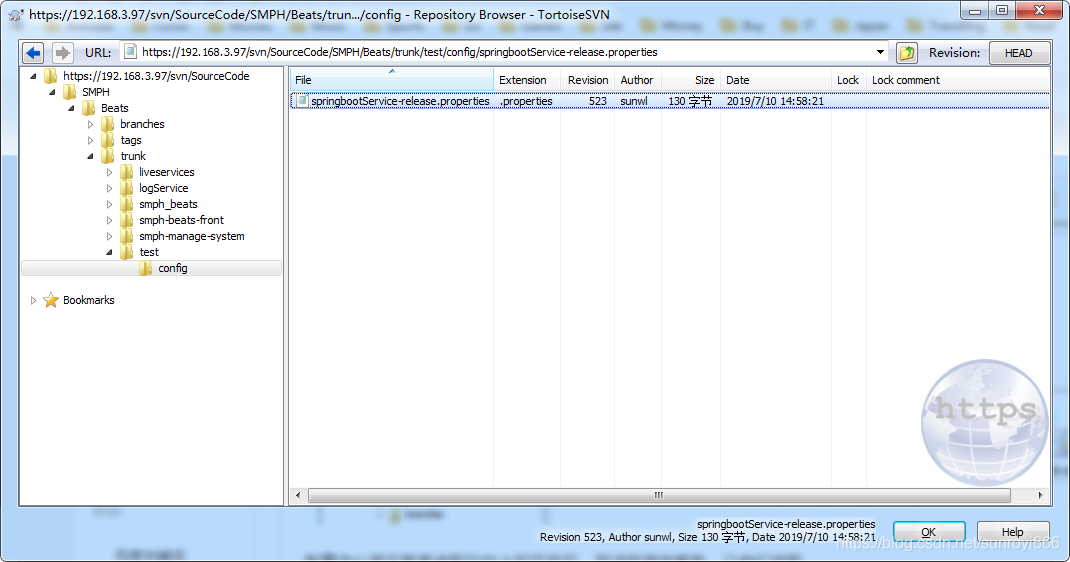

我这里用的是SVN，在config目录下创建文件springbootService-release.properties。
将springbootService的application.properties的内容复制进去。
为了与原文件区分看效果，我这里将server.port设为6003（原来是6001）
1 2 3 4 5 6 7 8 9 10 11 12 13 spring.application.name=springbootService server.port=6003 eureka.client.service-url.defaultZone=http://localhost:5000/eureka/
配置中心其实就是读取SVN上的文件后，发送给其他服务，让他们读取。
1. 创建Maven项目springbootConfig
同springbootService

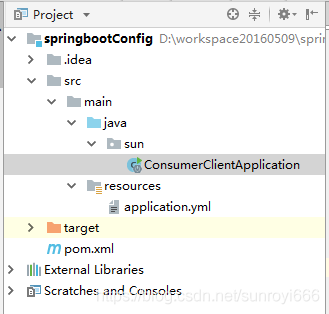

2. 项目结构和代码
pom.xml
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248 249 250 251 252 253 254 255 256 257 <?xml version="1.0" encoding="UTF-8"?> <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion> <groupId>com.sun</groupId> <artifactId>springbootConfig</artifactId> <version>1.0-SNAPSHOT</version> <packaging>jar</packaging> <parent> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-parent</artifactId> <version>1.5.12.RELEASE</version> </parent> <properties> <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding> <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding> <java.version>1.8</java.version> <spring-cloud.version>Edgware.RELEASE</spring-cloud.version> </properties> <dependencies> <dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-config-server</artifactId> </dependency> <dependency> <groupId>org.tmatesoft.svnkit</groupId> <artifactId>svnkit</artifactId> </dependency> <dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-starter-eureka</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-test</artifactId> <scope>test</scope> </dependency> </dependencies> <dependencyManagement> <dependencies> <dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-dependencies</artifactId> <version>${spring-cloud.version}</version> <type>pom</type> <scope>import</scope> </dependency> </dependencies> </dependencyManagement> <build> <plugins> <plugin> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-maven-plugin</artifactId> </plugin> </plugins> </build> </project>
application.yml
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 server: port: 6002 spring: application: name: springbootConfig profiles: active: subversion cloud: config: server: svn: uri: https://192.168.3.97/svn/SourceCode/SMPH/Beats/trunk/test/config #username: ***** #password: ***** default-label: eureka: client: service-url: defaultZone: http://localhost:5000/eureka/ instance: preferIpAddress: true instance-id: ${spring.cloud.client.ipAddress}:${server.port} lease-expiration-duration-in-seconds: 30 lease-renewal-interval-in-seconds: 30
ConsumerClientApplication
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 package sun; import org.springframework.boot.SpringApplication; import org.springframework.boot.autoconfigure.SpringBootApplication; import org.springframework.cloud.config.server.EnableConfigServer; @SpringBootApplication @EnableConfigServer public class ConsumerClientApplication { public static void main(String[] args) { SpringApplication.run(ConsumerClientApplication.class, args); } }
3. 启动Config配置中心

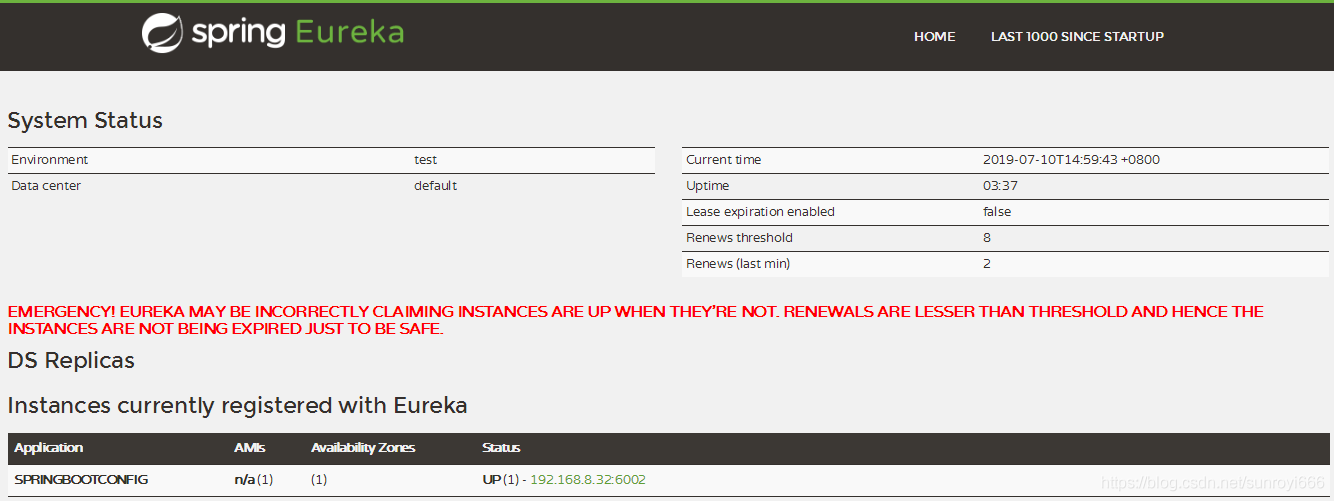

3.1. Eureka中能够看到Config配置中心已注册
3.2. 打开http://localhost:6002/springbootService/release，能够看到配置文件的内容
1 {"name":"springbootService","profiles":["release"],"label":null,"version":"523","state":null,"propertySources":[{"name":"https://192.168.3.97/svn/SourceCode/SMPH/Beats/trunk/test/config/springbootService-release.properties","source":{"server.port":"6003","eureka.client.service-url.defaultZone":"http://localhost:5000/eureka/","spring.application.name":"springbootService"}}]}
4. 修改springbootService，使它能从配置中心读取配置文件
4.1. 在resources目录下创建bootstrap.yml，用来配置读取Config配置中心下的哪个文件
这里对应localhost:6002/springbootService-release.properties文件
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 spring: application: name : springbootService cloud: config: uri : http://localhost:6002/ profile : release
4.2. 修改pom.xml,增加
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 <!--Spring Cloud Config 客户端依赖--> <dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-starter-config</artifactId> <version>1.4.0.RELEASE</version> </dependency> <!--Spring Boot Actuator，感应服务端变化--> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-actuator</artifactId> </dependency>
4.3. 在ConsumerClientApplication.java中增加
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 @RefreshScope //开启配置更新功能 package sun; import org.springframework.boot.SpringApplication; import org.springframework.boot.autoconfigure.SpringBootApplication; import org.springframework.boot.web.servlet.ServletComponentScan; import org.springframework.cloud.client.discovery.EnableDiscoveryClient; import org.springframework.cloud.context.config.annotation.RefreshScope; @SpringBootApplication @ServletComponentScan @EnableDiscoveryClient @RefreshScope //开启配置更新功能 public class ConsumerClientApplication { public static void main(String[] args) { SpringApplication.run(ConsumerClientApplication.class, args); } }
4.4. 启动springbootService，在Eureka中可以看到，多了个端口是6003的服务。

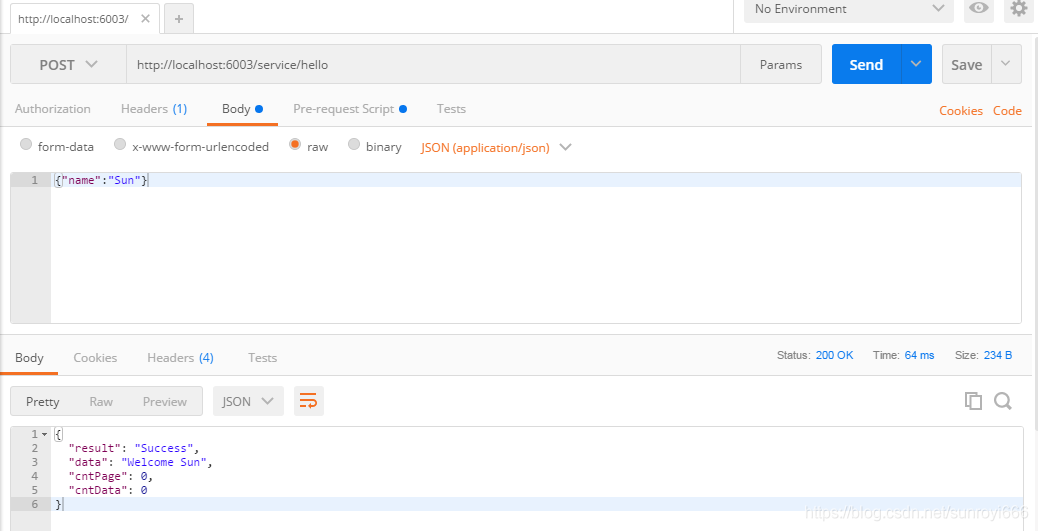

4.5. 接口可以从6003访问，原来的6001不能用了，说明配置中心的文件覆盖了本地的application.properties
四. 搭建SpringBootConsumerFeign，使用Feign来调用各个微服务
1.直接从springbootService复制一份，命名为springbootConsumerFeign
别忘了把配置里面的名字都改掉

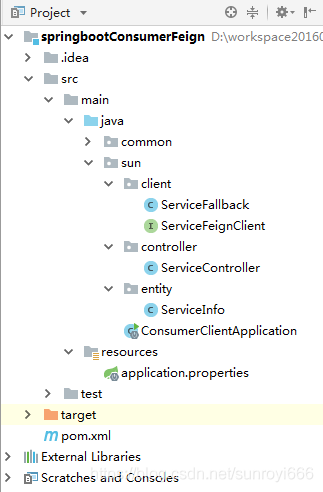

2. 项目结构和代码
2.1. 在pom中添加Feign
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 <dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-starter-openfeign</artifactId> <version>1.4.0.RELEASE</version> </dependency> <dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-starter-hystrix</artifactId> </dependency> <dependency> <groupId>com.netflix.hystrix</groupId> <artifactId>hystrix-javanica</artifactId> <version>RELEASE</version> </dependency>
2.2. 修改application.properties
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 spring.application.name=springbootConsumerFeign server.port=6004 feign.hystrix.enabled=true eureka.client.service-url.defaultZone=http://localhost:5000/eureka/
2.3. 在ConsumerClientApplication.java中增加
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 @EnableFeignClients package sun; import org.springframework.boot.SpringApplication; import org.springframework.boot.autoconfigure.SpringBootApplication; import org.springframework.boot.web.servlet.ServletComponentScan; import org.springframework.cloud.client.discovery.EnableDiscoveryClient; import org.springframework.cloud.context.config.annotation.RefreshScope; import org.springframework.cloud.netflix.feign.EnableFeignClients; @SpringBootApplication @ServletComponentScan @EnableDiscoveryClient @EnableFeignClients public class ConsumerClientApplication { public static void main(String[] args) { SpringApplication.run(ConsumerClientApplication.class, args); } }
2.4. 在sun目录下添加client目录，并新建文件ServiceFeignClient
这里是声明接口，指向springbootService的接口
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 package sun.client; import common.entity.RestfulResult; import org.springframework.cloud.netflix.feign.FeignClient; import org.springframework.stereotype.Component; import org.springframework.web.bind.annotation.RequestBody; import org.springframework.web.bind.annotation.RequestMapping; import sun.entity.ServiceInfo; @Component @FeignClient(value = "springbootService", fallback=ServiceFallback.class) //这里的value对应调用服务的spring.applicatoin.name public interface ServiceFeignClient { @RequestMapping(value = "/service/hello") RestfulResult hello(@RequestBody ServiceInfo serviceInfo); }
添加ServiceFallback.java，用于熔断发生时的处理。
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 package sun.client; import common.entity.RestfulResult; import org.springframework.stereotype.Component; import sun.entity.ServiceInfo; @Component public class ServiceFallback implements ServiceFeignClient{ @Override public RestfulResult hello(ServiceInfo serviceInfo) { RestfulResult result = new RestfulResult(); result.setData("服务调用失败"); return result; } }
2.5. 修改ServiceController.java
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 /** * Copyright © 2012-2014 <a href="https://github.com/thinkgem/jeesite">JeeSite</a> All rights reserved. */ package sun.controller; import common.entity.RestfulResult; import common.utils.CommUtils; import org.springframework.beans.factory.annotation.Autowired; import org.springframework.web.bind.annotation.RequestBody; import org.springframework.web.bind.annotation.RequestMapping; import org.springframework.web.bind.annotation.RestController; import sun.client.ServiceFeignClient; import sun.entity.ServiceInfo; import javax.servlet.http.HttpServletRequest; import javax.servlet.http.HttpServletResponse; @RestController public class ServiceController { @Autowired ServiceFeignClient serviceFeignClient; // 调用：localhost:6004/consumerService?token=1 @RequestMapping("/consumerService") public void consumerService(HttpServletRequest request, HttpServletResponse response, @RequestBody ServiceInfo serviceInfo){ RestfulResult restfulResult = serviceFeignClient.hello(serviceInfo); CommUtils.printDataJason(response, restfulResult); } }
3. 启动springbootConsumer并测试接口

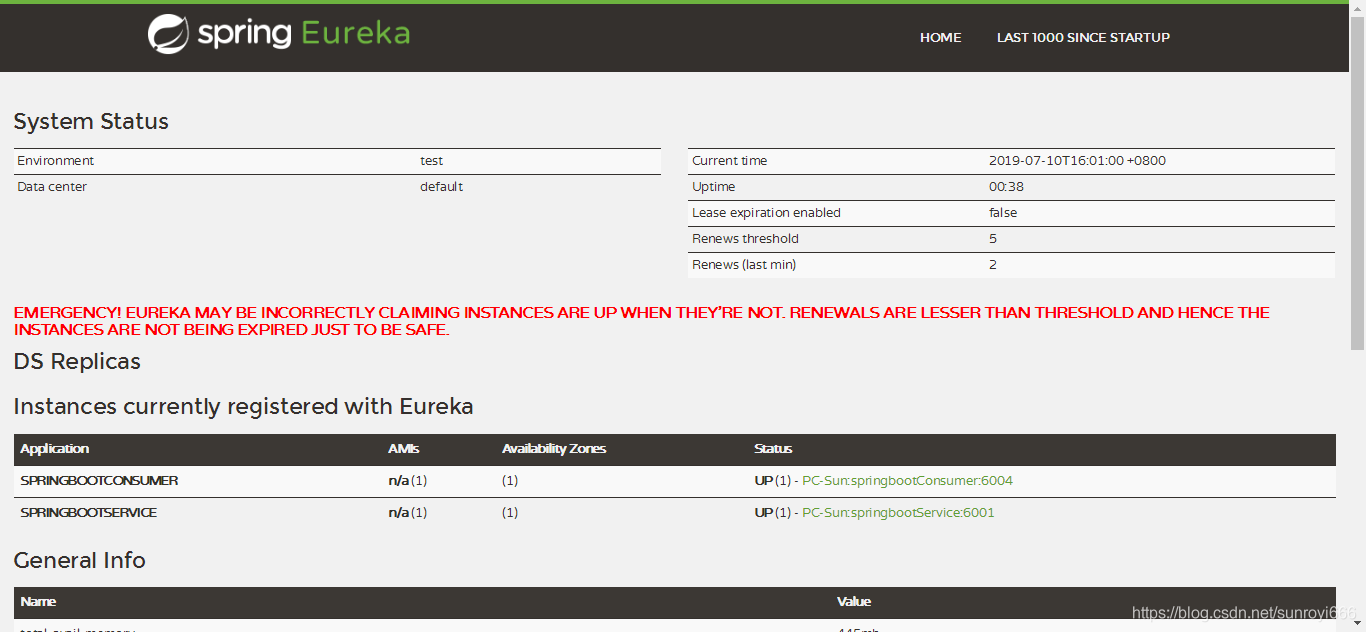

3.1. 启动后，在Eureka中发现服务

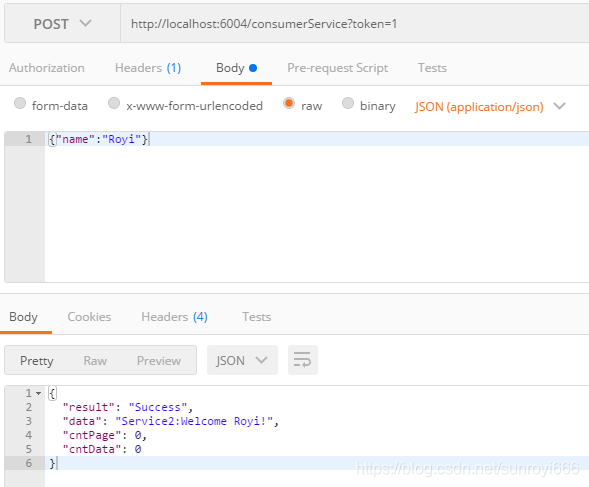

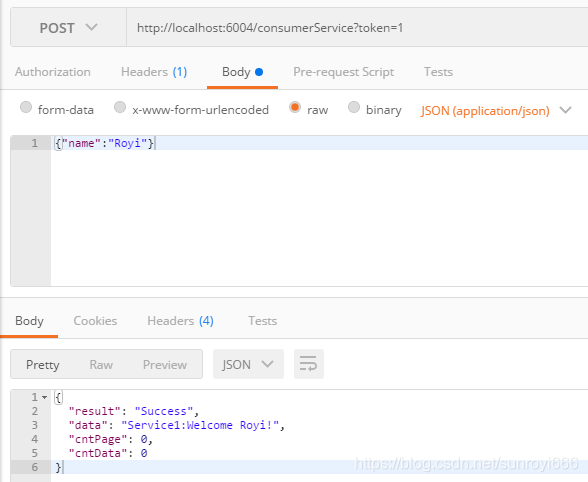

3.2. 调用SpringBootConsumer的接口http://localhost:6004/consumerService
连续调用，会轮询Service1和Service2

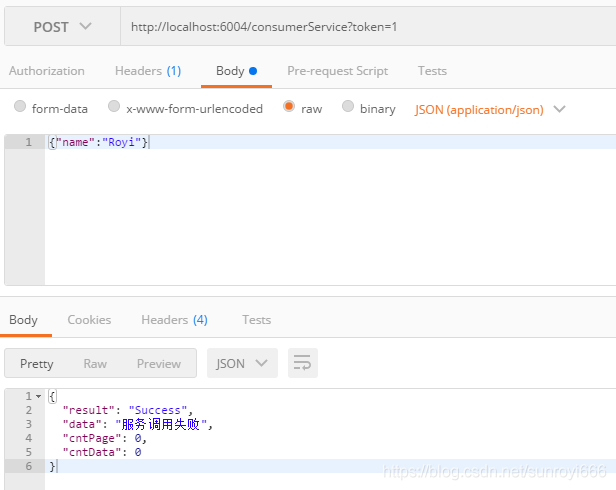

关闭Service1，看看Hystrix是否起作用：
五. 搭建SpringBootConsumerRibbon，使用Ribbon+RestTemplate来调用各个微服务
1.直接从springbootService复制一份，命名为springbootConsumerRibbon
别忘了把配置里面的名字都改掉

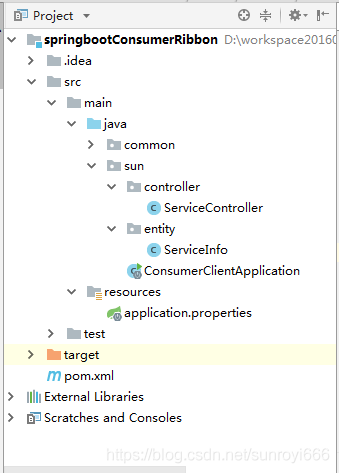

2. 项目结构和代码
2.1. 在pom中添加Feign
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 <dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-starter-openfeign</artifactId> <version>1.4.0.RELEASE</version> </dependency> <dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-starter-hystrix</artifactId> </dependency> <dependency> <groupId>com.netflix.hystrix</groupId> <artifactId>hystrix-javanica</artifactId> <version>RELEASE</version> </dependency> <dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-starter-netflix-ribbon</artifactId> <version>1.4.0.RELEASE</version> </dependency>
2.2. 修改application.properties
1 2 3 4 5 6 7 8 9 10 11 12 13 spring.application.name=springbootConsumerRibbon server.port=6007 eureka.client.service-url.defaultZone=http://localhost:5000/eureka/
2.3. 修改ConsumerClientApplication.java
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 package sun; import org.springframework.boot.SpringApplication; import org.springframework.boot.autoconfigure.SpringBootApplication; import org.springframework.boot.web.servlet.ServletComponentScan; import org.springframework.cloud.client.discovery.EnableDiscoveryClient; import org.springframework.cloud.client.loadbalancer.LoadBalanced; import org.springframework.cloud.context.config.annotation.RefreshScope; import org.springframework.cloud.netflix.feign.EnableFeignClients; import org.springframework.cloud.netflix.hystrix.EnableHystrix; import org.springframework.context.annotation.Bean; import org.springframework.web.client.RestTemplate; @SpringBootApplication @ServletComponentScan @EnableDiscoveryClient @EnableHystrix public class ConsumerClientApplication { public static void main(String[] args) { SpringApplication.run(ConsumerClientApplication.class, args); } @Bean @LoadBalanced RestTemplate restTemplate(){ return new RestTemplate(); } }
2.4. 修改ServiceController.java
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 /** * Copyright © 2012-2014 <a href="https://github.com/thinkgem/jeesite">JeeSite</a> All rights reserved. */ package sun.controller; import com.netflix.hystrix.contrib.javanica.annotation.HystrixCommand; import org.springframework.beans.factory.annotation.Autowired; import org.springframework.beans.factory.annotation.Value; import org.springframework.web.bind.annotation.RequestBody; import org.springframework.web.bind.annotation.RequestMapping; import org.springframework.web.bind.annotation.RestController; import org.springframework.web.client.RestTemplate; import sun.entity.ServiceInfo; @RestController public class ServiceController { @Autowired RestTemplate restTemplate; @Value("${server.port}") String port; // 调用：localhost:6007/consumerServiceRibbon?token=1 @RequestMapping("/consumerServiceRibbon") @HystrixCommand(fallbackMethod="consumerServiceRibbonFallback") public String consumerServiceRibbon(@RequestBody ServiceInfo serviceInfo){ String result = this.restTemplate.postForObject("http://springbootService/service/rest?token=1", serviceInfo, String.class); return result; } public String consumerServiceRibbonFallback(@RequestBody ServiceInfo serviceInfo){ return "consumerServiceRibbon异常，端口：" + port + "，Name=" + serviceInfo.getName(); } }
3. 启动springbootConsumer并测试接口
3.1. 启动后，在Eureka中发现服务
3.2. 调用SpringBootConsumer的接口 localhost:6007/consumerServiceRibbon?token=1

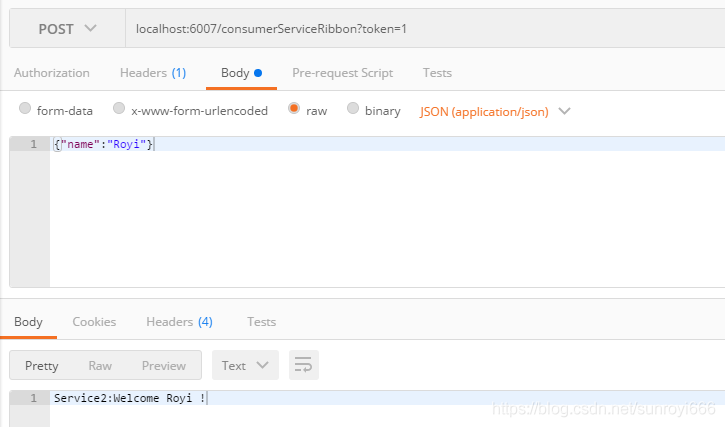

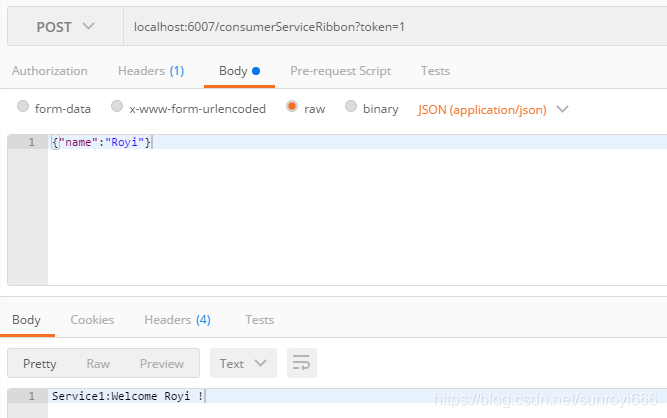

连续调用，会轮询Service1和Service2

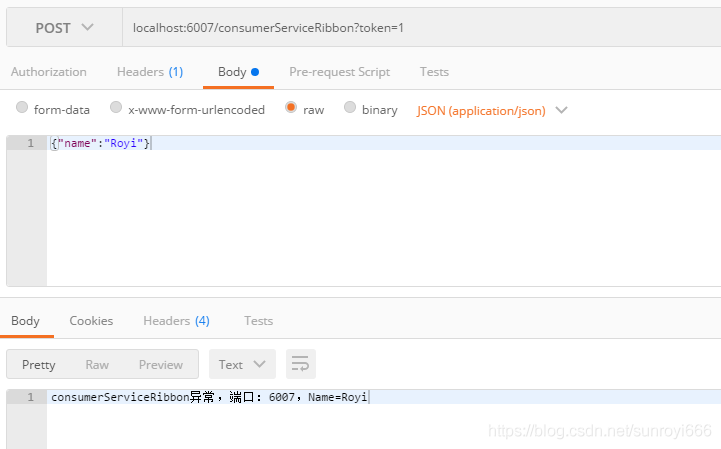

关闭Service1，看看Hystrix是否起作用：
六. 搭建Zuul+Hystrix
Zuul对外提供统一的服务入口，主要是用作网址重定向。
还可以通过Filter实现过滤器。
配合Hystrix实现熔断器，当服务宕机时可以做异常处理。
1. 创建Maven项目springbootZuul
同springbootService

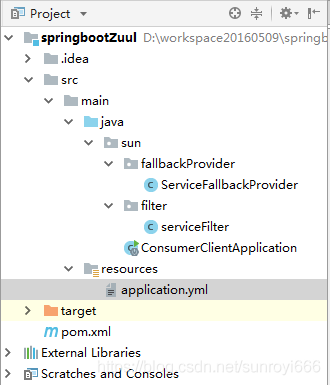

2. 项目结构和代码
pom.xml
这里我把spring boot改成了2.0版本，spring cloud改成了Finchley.SR2。
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248 249 250 251 252 253 254 255 256 257 258 259 260 261 262 263 264 265 266 267 268 269 270 271 272 273 274 275 276 277 278 279 280 281 <?xml version="1.0" encoding="UTF-8"?> <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion> <groupId>com.sun</groupId> <artifactId>springbootZuul</artifactId> <version>1.0-SNAPSHOT</version> <packaging>jar</packaging> <parent> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-parent</artifactId> <!--<version>1.5.8.RELEASE</version>--> <version>2.0.0.RELEASE</version> </parent> <properties> <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding> <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding> <java.version>1.8</java.version> <spring-cloud.version>Finchley.SR2</spring-cloud.version> <!--<spring-cloud.version>Edgware.SR2</spring-cloud.version>--> </properties> <dependencies> <dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-starter-eureka</artifactId> <version>1.4.0.RELEASE</version> </dependency> <dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId> </dependency> <dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-starter-netflix-zuul</artifactId> </dependency> <!-- 配置hystrix所需依赖的包 --> <dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-starter-netflix-hystrix</artifactId> </dependency> </dependencies> <dependencyManagement> <dependencies> <dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-dependencies</artifactId> <version>${spring-cloud.version}</version> <type>pom</type> <scope>import</scope> </dependency> </dependencies> </dependencyManagement> <build> <plugins> <plugin> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-maven-plugin</artifactId> </plugin> </plugins> </build> </project>
application.yml
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 spring: application: name : springbootZuul server: port : 6005 eureka: client: service-url: defaultZone : http://localhost:5000/eureka/ zuul: routes: sbService : path : /sbService/** serviceId : springbootService
ConsumerClientApplication.java
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 package sun; import org.springframework.boot.SpringApplication; import org.springframework.boot.autoconfigure.SpringBootApplication; import org.springframework.cloud.client.discovery.EnableDiscoveryClient; import org.springframework.cloud.context.config.annotation.RefreshScope; import org.springframework.cloud.netflix.eureka.EnableEurekaClient; import org.springframework.cloud.netflix.zuul.EnableZuulProxy; @SpringBootApplication @EnableDiscoveryClient @EnableZuulProxy @RefreshScope public class ConsumerClientApplication { public static void main(String[] args) { SpringApplication.run(ConsumerClientApplication.class, args); } }
serviceFilter（过滤器，非必须）
这里判断了请求中是否带token，如果没有，则显示”there is no request token”
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 package sun.filter; import java.io.IOException; import javax.servlet.http.HttpServletRequest; import org.slf4j.Logger; import org.slf4j.LoggerFactory; import org.springframework.stereotype.Component; import com.netflix.zuul.ZuulFilter; import com.netflix.zuul.context.RequestContext; import com.netflix.zuul.exception.ZuulException; @Component public class serviceFilter extends ZuulFilter { private static Logger log=LoggerFactory.getLogger(serviceFilter.class); @Override public String filterType() { return "pre"; // 定义filter的类型，有pre、route、post、error四种 } @Override public int filterOrder() { return 0; // 定义filter的顺序，数字越小表示顺序越高，越先执行 } @Override public boolean shouldFilter() { return true; // 表示是否需要执行该filter，true表示执行，false表示不执行 } @Override public Object run() { // filter需要执行的具体操作 RequestContext ctx = RequestContext.getCurrentContext(); HttpServletRequest request = ctx.getRequest(); String token = request.getParameter("token"); System.out.println(token); if(token==null){ log.warn("there is no request token"); ctx.setSendZuulResponse(false); ctx.setResponseStatusCode(401); try { ctx.getResponse().getWriter().write("there is no request token"); } catch (IOException e) { e.printStackTrace(); } return null; } log.info("ok"); return null; } } ServiceFallbackProvider（熔断器，非必须）
当没有服务时，显示”Sorry, the service is unavailable now.”
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248 249 package sun.fallbackProvider; import java.io.ByteArrayInputStream; import java.io.IOException; import java.io.InputStream; import org.springframework.cloud.netflix.zuul.filters.route.FallbackProvider; import org.springframework.http.HttpHeaders; import org.springframework.http.HttpStatus; import org.springframework.http.MediaType; import org.springframework.http.client.ClientHttpResponse; import org.springframework.stereotype.Component; @Component public class ServiceFallbackProvider implements FallbackProvider { @Override // 指定熔断器功能应用于哪些路由的服务 public String getRoute() { // 这里只针对"springbootService"服务进行熔断 // 如果需要针对所有服务熔断，则return "*" return "springbootService"; } @Override public ClientHttpResponse fallbackResponse(String route, Throwable cause) { System.out.println("route:"+route); return new ClientHttpResponse() { @Override public HttpStatus getStatusCode() throws IOException { return HttpStatus.OK; } @Override public int getRawStatusCode() throws IOException { return 200; } @Override public String getStatusText() throws IOException { return "ok"; } @Override public void close() { } @Override // 发生熔断式，返回的信息 public InputStream getBody() throws IOException { return new ByteArrayInputStream("Sorry, the service is unavailable now.".getBytes()); } @Override public HttpHeaders getHeaders() { HttpHeaders headers = new HttpHeaders(); headers.setContentType(MediaType.APPLICATION_JSON); return headers; } }; } }
3. 启动springbootZuul并测试

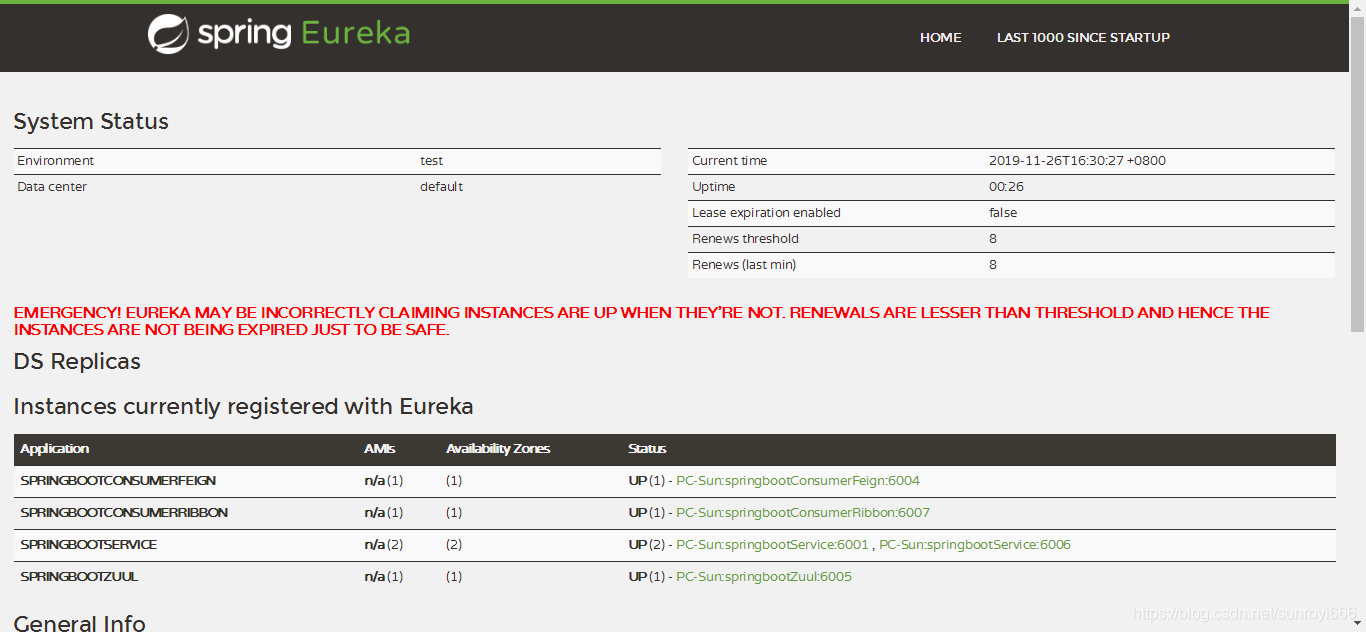

3.1. 在Eureka上看到springbootZuul服务已启动

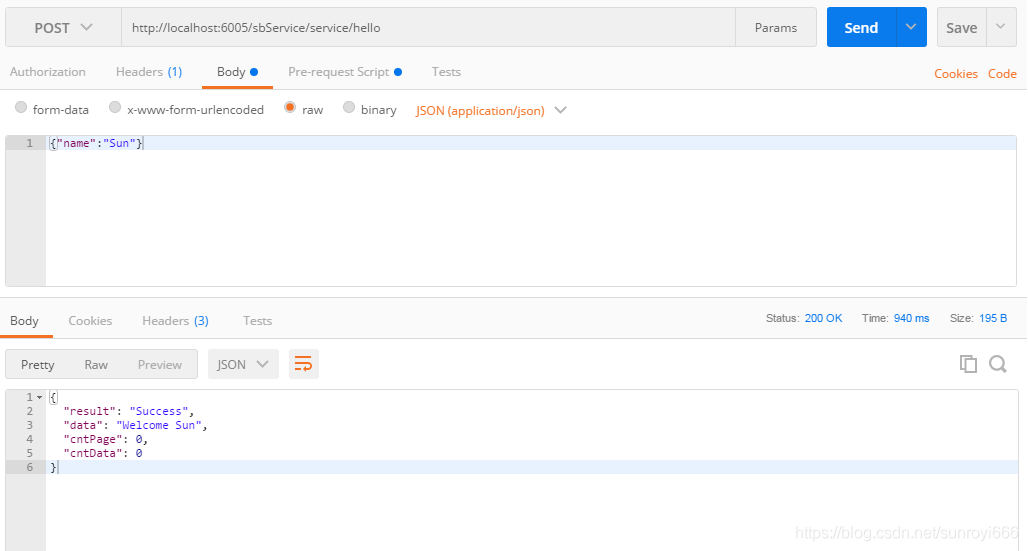

3.2. 现在可以通过统一路由访问服务了

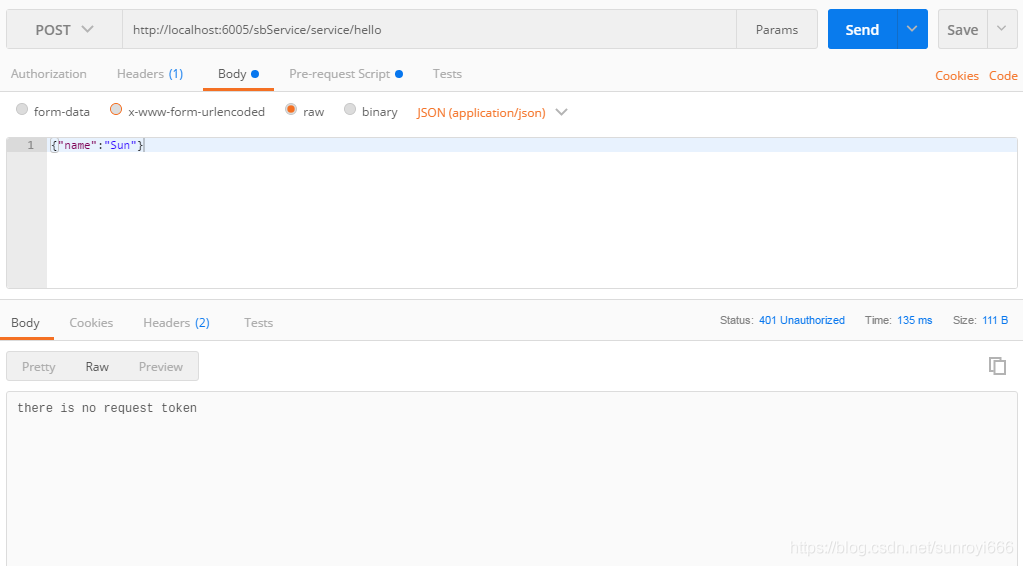

3.3. 使用Filter，请求不带token时的效果：
3.4. 使用Filter，请求带token时的效果：
3.5. 使用Hystrix，关闭springbootService服务时的效果：
六. 自动化部署Jenkins
1. 将代码上传到Github
SVN也可以，这里我就用Github了。
先去下载Git官网下载Git-2.23.0-64-bit.exe
再去下载TortoiseGit，有了这个就不用老是打命令commit了。

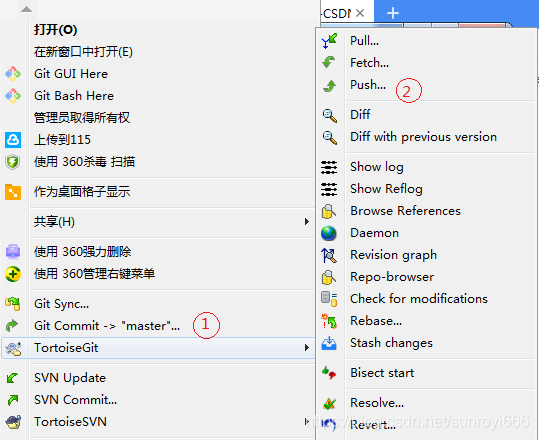

1.1. 图形界面的更新代码
Git的项目初始化就不多说了，这里介绍一下用图形界面的代码更新步骤。
① Git Commit -> “master”
② Push
1.2. 我在将Git从1.X升级到2.X的过程中，遇到了
的问题，将Git版本升级后也解决不了。
后来想起来，是不是在环境变量中配置了Git1.X的路径
果然，在系统里面的Path中找到了Git的配置。
原来Git2.X以后，默认路径放到了C:\Program Files\Git下，和原来1.X的路径不一样了。
所以需要把1.X的路径配置删除，否则还是会优先使用1.X的Git。
2. 搭建Jenkins环境
2.1. 去Jenkins官网下载war包
2.2. 启动Jenkins的war包
1 java -jar jenkins.war --httpPort=8080
启动后，访问http://localhost:8080 即可。
使用的时候需要注册，这些就省略不说了。

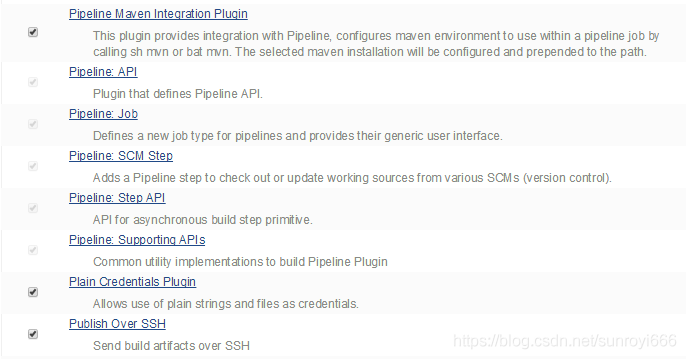

2.3. Jenkins插件的安装
需要安装Maven，Git等插件，才能和项目关联使用

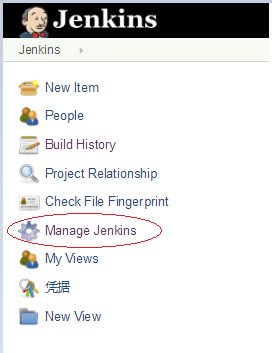

Manage Jenkins -> Manage Plugins -> Available里面找

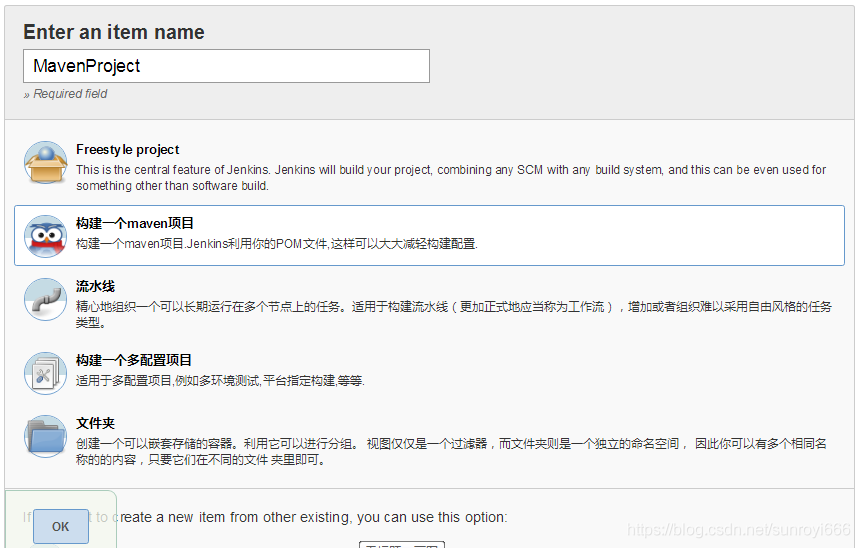

2.4. 创建新项目

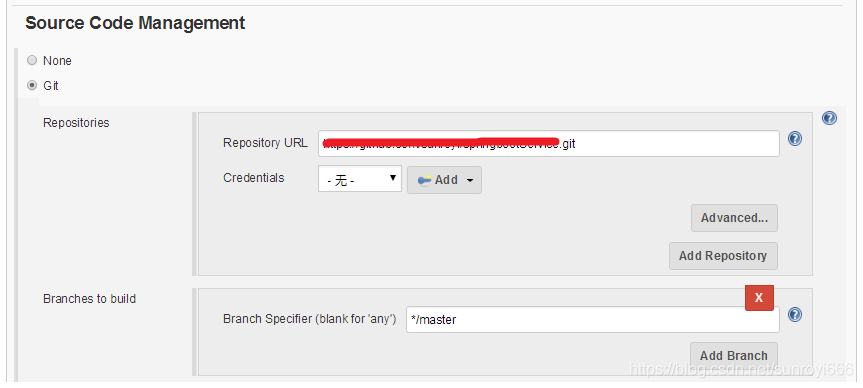

在Source Code Management里面选择Git，填入自己的仓库地址：

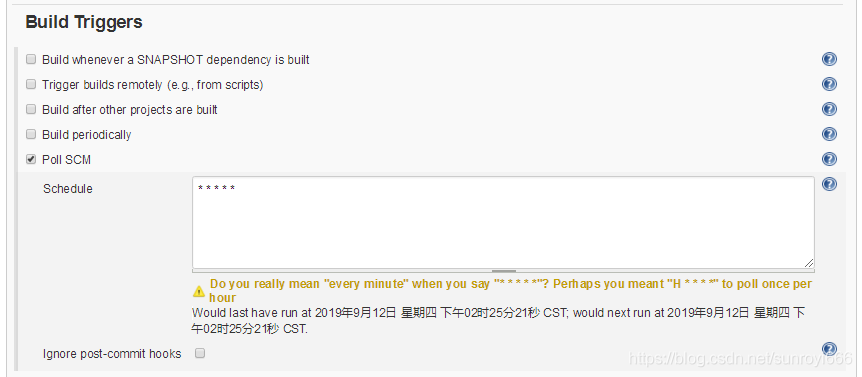

在Build Triggers里面，选择Poll SCM，在Schedule中填入 * * * * * ：

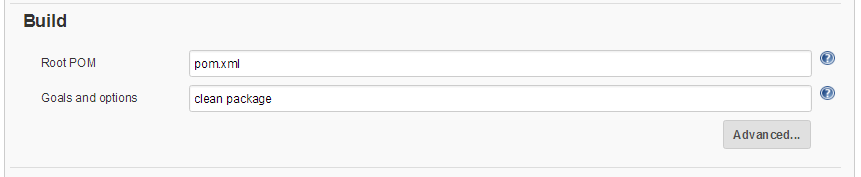

在Build中，设置pom.xml的路径
一开始可能会报找不到pom.xml的Error，因为Jenkins需要先从Git库中同步项目，等同步完以后，Error就会自动消失。

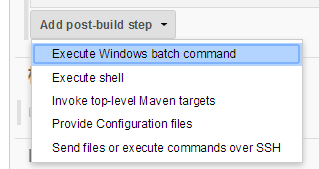

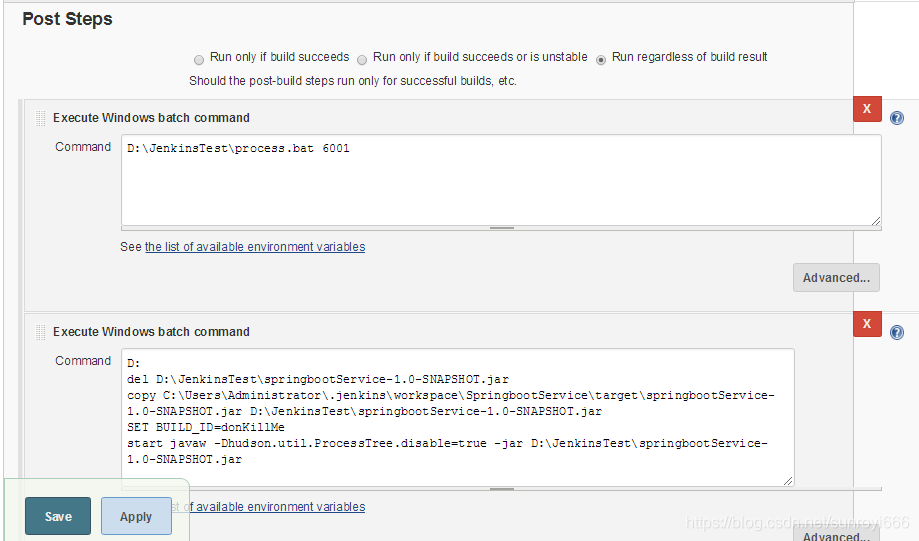

在Post Steps中，Add post-build stemp -> Execute Windows bath command
添加的windows命令如下：
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 D:\JenkinsTest\process.bat 6001 D: del D:\JenkinsTest\springbootService-1.0-SNAPSHOT.jar copy C:\Users\Administrator\.jenkins\workspace\SpringbootService\target\springbootService-1.0-SNAPSHOT.jar D:\JenkinsTest\springbootService-1.0-SNAPSHOT.jar SET BUILD_ID=donKillMe start javaw -Dhudson.util.ProcessTree.disable=true -jar D:\JenkinsTest\springbootService-1.0-SNAPSHOT.jar

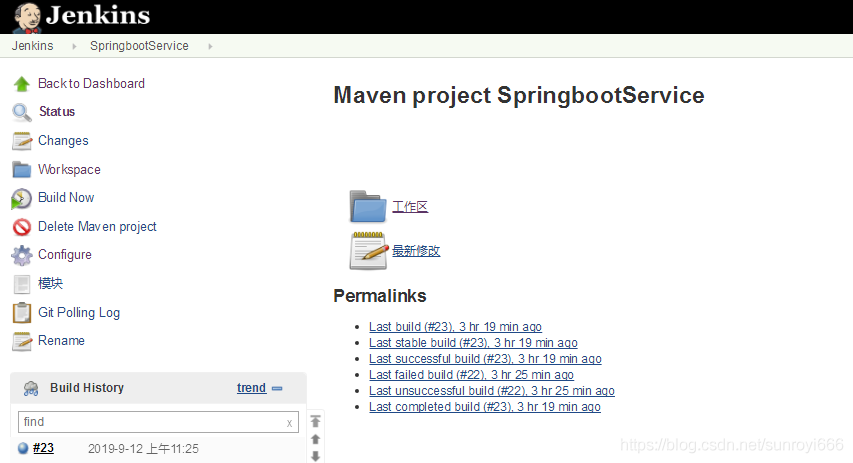

效果如图：
其中，D:\JenkinsTest\process.bat的内容如下：
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 ::demo @echo off ::延迟环境变量扩展 setlocal enabledelayedexpansion for /f "delims= tokens=1" %%i in ('netstat -aon ^| findstr %1') do ( set a=%%i) ::判断服务是否已经启动，如果启动则杀掉进程 if defined a (taskkill /F /pid "!a:~71,7!") else (echo Service does not exist) ::等待你按任意键结束 pause>nul ::执行时后面带上端口即可
命令说明：
① 创建D:\JenkinsTest目录
② process.bat 6001
是为了查找是否有占用6001端口的进程，如果有，则关闭6001端口的进程，因为我这里的Service启用的是6001端口。
③ 删除D:\JenkinsTest目录下的Service的Jar包，并将Jenkins自动打包生成的Jar包拷过来
然后通过Start javaw -jar *.jar命令在后台启动jar包。
④ 由于Jenkins默认在自动Build完成后，会关闭所有子进程，所以用下面这个命令可以避免Service被关闭
SET BUILD_ID=donKillMe
⑤ 据说start javaw -Dhudson.util.ProcessTree.disable=true -jar *.jar也有用，但是我用下来好像子进程还是被关闭了。
3. 测试
现在，当我更新代码到Git上以后，Jenkins就会自动将代码打包成Jar，然后执行我预先写好的命令自动部署启动。

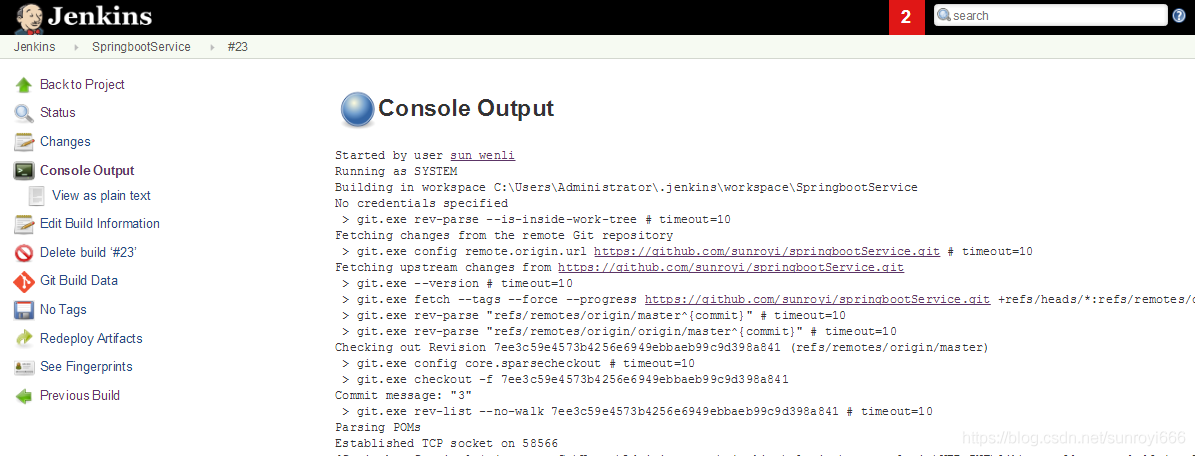

在Console Output中可以看到Jenkins的执行内容：
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248 249 250 251 252 253 254 255 256 257 258 259 260 261 262 263 264 265 266 267 268 269 270 271 272 273 274 275 276 277 278 279 280 281 282 283 284 285 286 287 288 289 290 291 292 293 294 295 296 297 298 299 300 301 302 303 304 305 306 307 308 309 310 311 312 313 314 315 316 317 318 319 320 321 322 323 324 325 326 327 328 329 330 331 332 333 334 335 336 337 338 339 340 341 Started by user sun wenli Running as SYSTEM Building in workspace C:\Users\Administrator\.jenkins\workspace\SpringbootService No credentials specified > git.exe rev-parse --is-inside-work-tree # timeout=10 Fetching changes from the remote Git repository > git.exe config remote.origin.url https://github.com/sunroyi/springbootService.git # timeout=10 Fetching upstream changes from https://github.com/sunroyi/springbootService.git > git.exe --version # timeout=10 > git.exe fetch --tags --force --progress https://github.com/sunroyi/springbootService.git +refs/heads/*:refs/remotes/origin/* > git.exe rev-parse "refs/remotes/origin/master^{commit}" # timeout=10 > git.exe rev-parse "refs/remotes/origin/origin/master^{commit}" # timeout=10 Checking out Revision 7ee3c59e4573b4256e6949ebbaeb99c9d398a841 (refs/remotes/origin/master) > git.exe config core.sparsecheckout # timeout=10 > git.exe checkout -f 7ee3c59e4573b4256e6949ebbaeb99c9d398a841 Commit message: "3" > git.exe rev-list --no-walk 7ee3c59e4573b4256e6949ebbaeb99c9d398a841 # timeout=10 Parsing POMs Established TCP socket on 58566 [SpringbootService] $ java -cp C:\Users\Administrator\.jenkins\plugins\maven-plugin\WEB-INF\lib\maven31-agent-1.13.jar;D:\maven\apache-maven-3.1.1\boot\plexus-classworlds-2.5.1.jar;D:\maven\apache-maven-3.1.1/conf/logging jenkins.maven3.agent.Maven31Main D:\maven\apache-maven-3.1.1 C:\Users\Administrator\.jenkins\war\WEB-INF\lib\remoting-3.29.jar C:\Users\Administrator\.jenkins\plugins\maven-plugin\WEB-INF\lib\maven31-interceptor-1.13.jar C:\Users\Administrator\.jenkins\plugins\maven-plugin\WEB-INF\lib\maven3-interceptor-commons-1.13.jar 58566 <===[JENKINS REMOTING CAPACITY]===>channel started Executing Maven: -B -f C:\Users\Administrator\.jenkins\workspace\SpringbootService\pom.xml clean package [INFO] Scanning for projects... [INFO] [INFO] ------------------------------------------------------------------------ [INFO] Building springbootService 1.0-SNAPSHOT [INFO] ------------------------------------------------------------------------ [INFO] [INFO] --- maven-clean-plugin:2.6.1:clean (default-clean) @ springbootService --- [INFO] Deleting C:\Users\Administrator\.jenkins\workspace\SpringbootService\target [INFO] [INFO] --- maven-resources-plugin:2.6:resources (default-resources) @ springbootService --- [INFO] Using 'UTF-8' encoding to copy filtered resources. [INFO] Copying 1 resource [INFO] Copying 1 resource [INFO] [INFO] --- maven-compiler-plugin:3.1:compile (default-compile) @ springbootService --- [INFO] Changes detected - recompiling the module! [INFO] Compiling 7 source files to C:\Users\Administrator\.jenkins\workspace\SpringbootService\target\classes [INFO] [INFO] --- maven-resources-plugin:2.6:testResources (default-testResources) @ springbootService --- [INFO] Using 'UTF-8' encoding to copy filtered resources. [INFO] skip non existing resourceDirectory C:\Users\Administrator\.jenkins\workspace\SpringbootService\src\test\resources [INFO] [INFO] --- maven-compiler-plugin:3.1:testCompile (default-testCompile) @ springbootService --- [INFO] No sources to compile [INFO] [INFO] --- maven-surefire-plugin:2.18.1:test (default-test) @ springbootService --- [INFO] No tests to run. [JENKINS] Recording test results [INFO] [INFO] --- maven-jar-plugin:2.6:jar (default-jar) @ springbootService --- [INFO] Building jar: C:\Users\Administrator\.jenkins\workspace\SpringbootService\target\springbootService-1.0-SNAPSHOT.jar [INFO] [INFO] --- spring-boot-maven-plugin:1.5.8.RELEASE:repackage (default) @ springbootService --- [INFO] ------------------------------------------------------------------------ [INFO] BUILD SUCCESS [INFO] ------------------------------------------------------------------------ [INFO] Total time: 34.060s [INFO] Finished at: Thu Sep 12 11:27:02 CST 2019 [INFO] Final Memory: 37M/403M [INFO] ------------------------------------------------------------------------ Waiting for Jenkins to finish collecting data [JENKINS] Archiving C:\Users\Administrator\.jenkins\workspace\SpringbootService\pom.xml to com.sun/springbootService/1.0-SNAPSHOT/springbootService-1.0-SNAPSHOT.pom [JENKINS] Archiving C:\Users\Administrator\.jenkins\workspace\SpringbootService\target\springbootService-1.0-SNAPSHOT.jar to com.sun/springbootService/1.0-SNAPSHOT/springbootService-1.0-SNAPSHOT.jar channel stopped [SpringbootService] $ cmd /c call C:\Users\ADMINI~1\AppData\Local\Temp\jenkins2482229857112663558.bat C:\Users\Administrator\.jenkins\workspace\SpringbootService>D:\JenkinsTest\process.bat 6001 成功: 已终止 PID 为 1299256 的进程。 [SpringbootService] $ cmd /c call C:\Users\ADMINI~1\AppData\Local\Temp\jenkins7623094155436157631.bat C:\Users\Administrator\.jenkins\workspace\SpringbootService>D: D:\workspace20160509\Jenkins>del D:\JenkinsTest\springbootService-1.0-SNAPSHOT.jar D:\workspace20160509\Jenkins>copy C:\Users\Administrator\.jenkins\workspace\SpringbootService\target\springbootService-1.0-SNAPSHOT.jar D:\JenkinsTest\springbootService-1.0-SNAPSHOT.jar 已复制 1 个文件。 D:\workspace20160509\Jenkins>SET BUILD_ID=donKillMe D:\workspace20160509\Jenkins>start javaw -Dhudson.util.ProcessTree.disable=true -jar D:\JenkinsTest\springbootService-1.0-SNAPSHOT.jar D:\workspace20160509\Jenkins>exit 0 Process leaked file descriptors. See https://jenkins.io/redirect/troubleshooting/process-leaked-file-descriptors for more information Finished: SUCCESS
结果验证：
